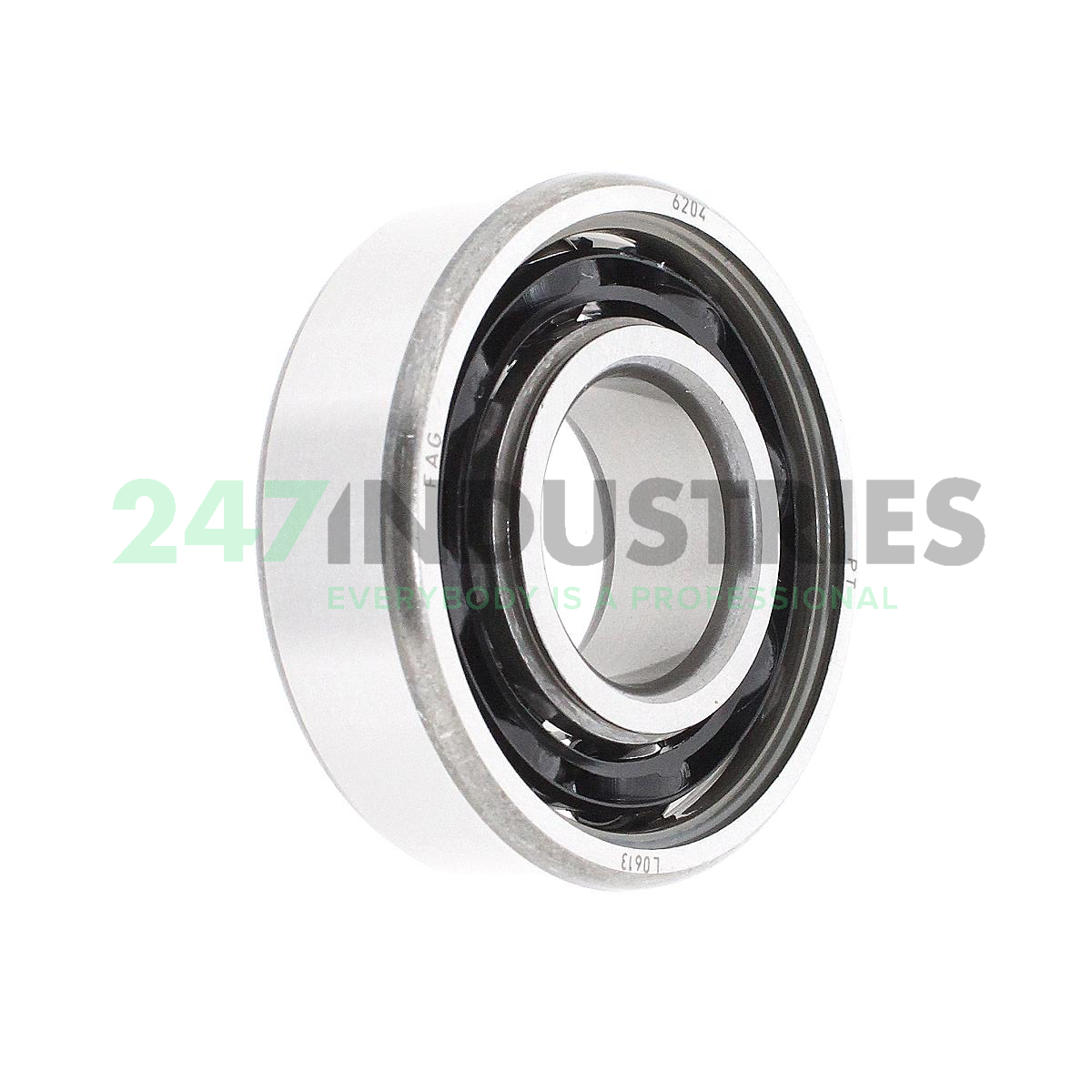

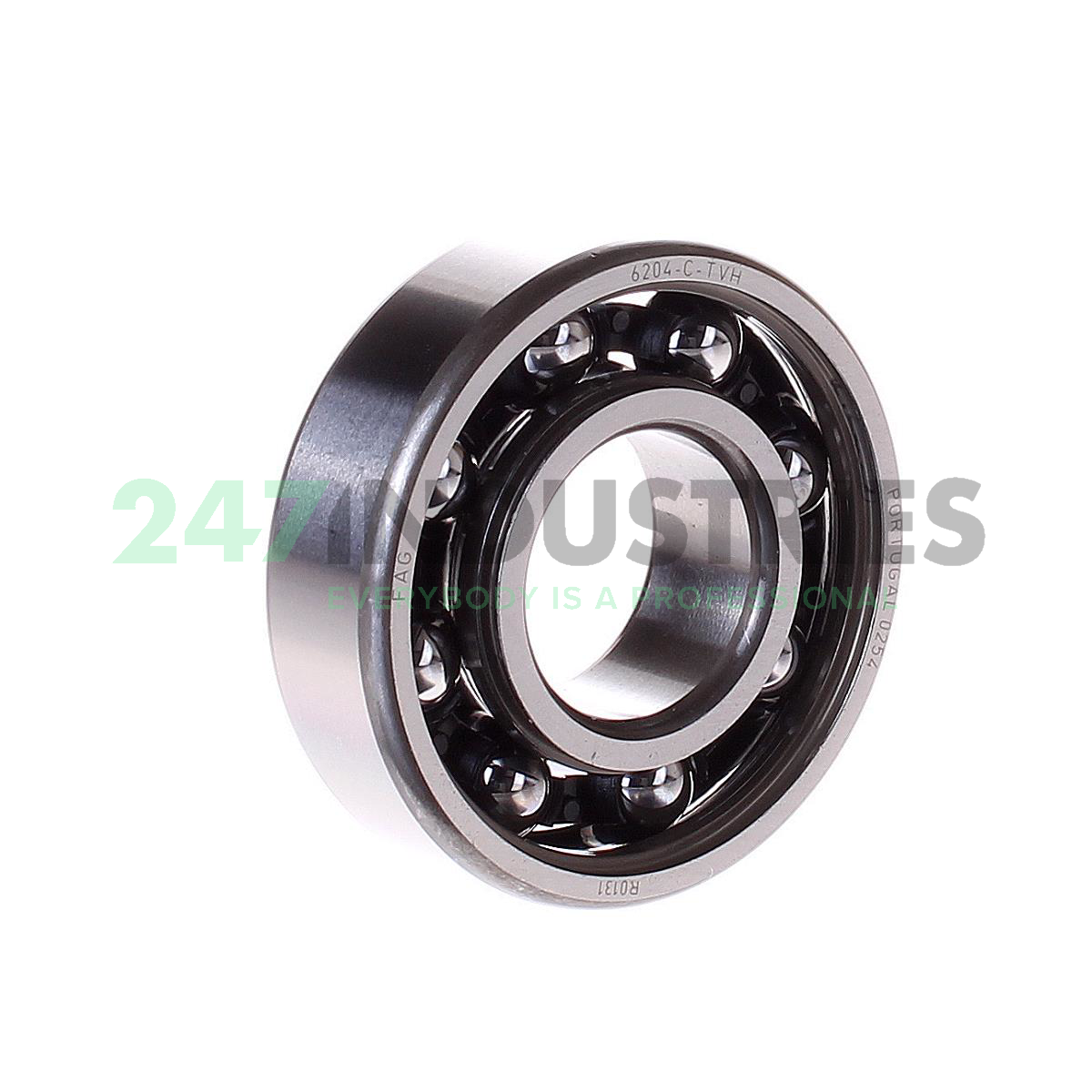

6204-C-TVH FAG

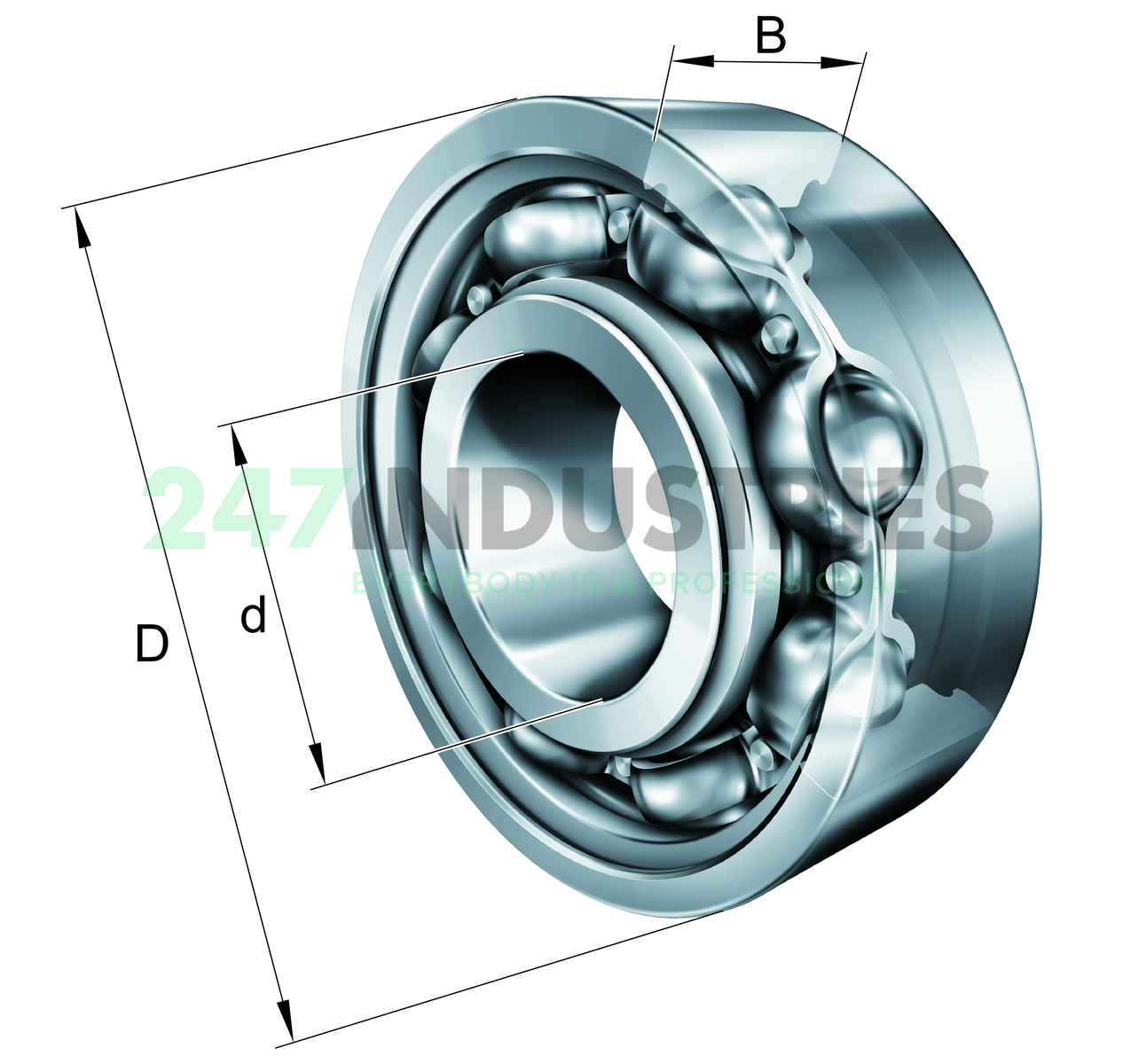

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. C Internal Design Modification
2. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding

Technical details

1. Availability 39 pcs
2. Brand FAG
3. Item number 6204-C-TVH FAG
4. Also known as 6204-TVH

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.1016

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 62..-C-TVH, single row, cf. DIN 625-1
