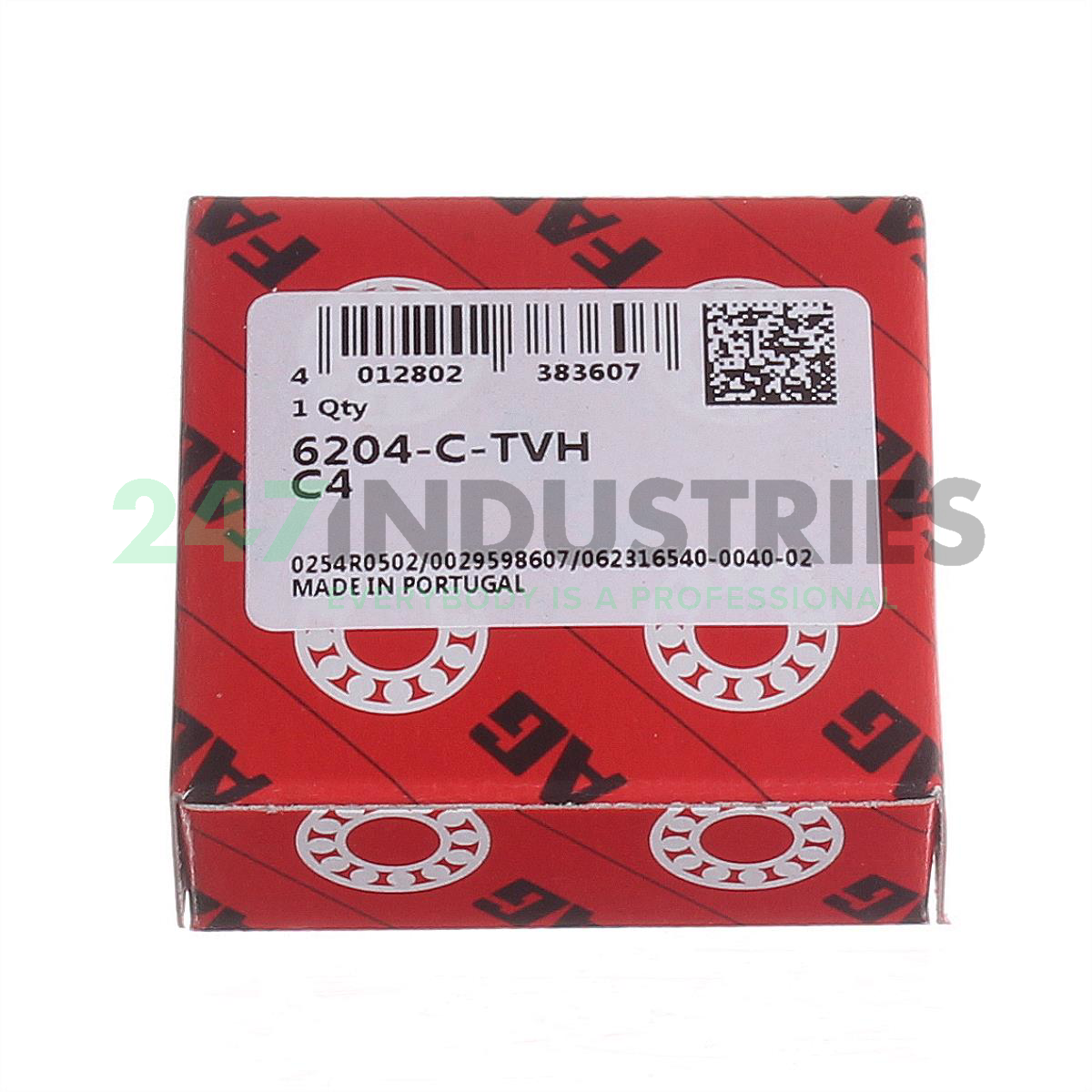

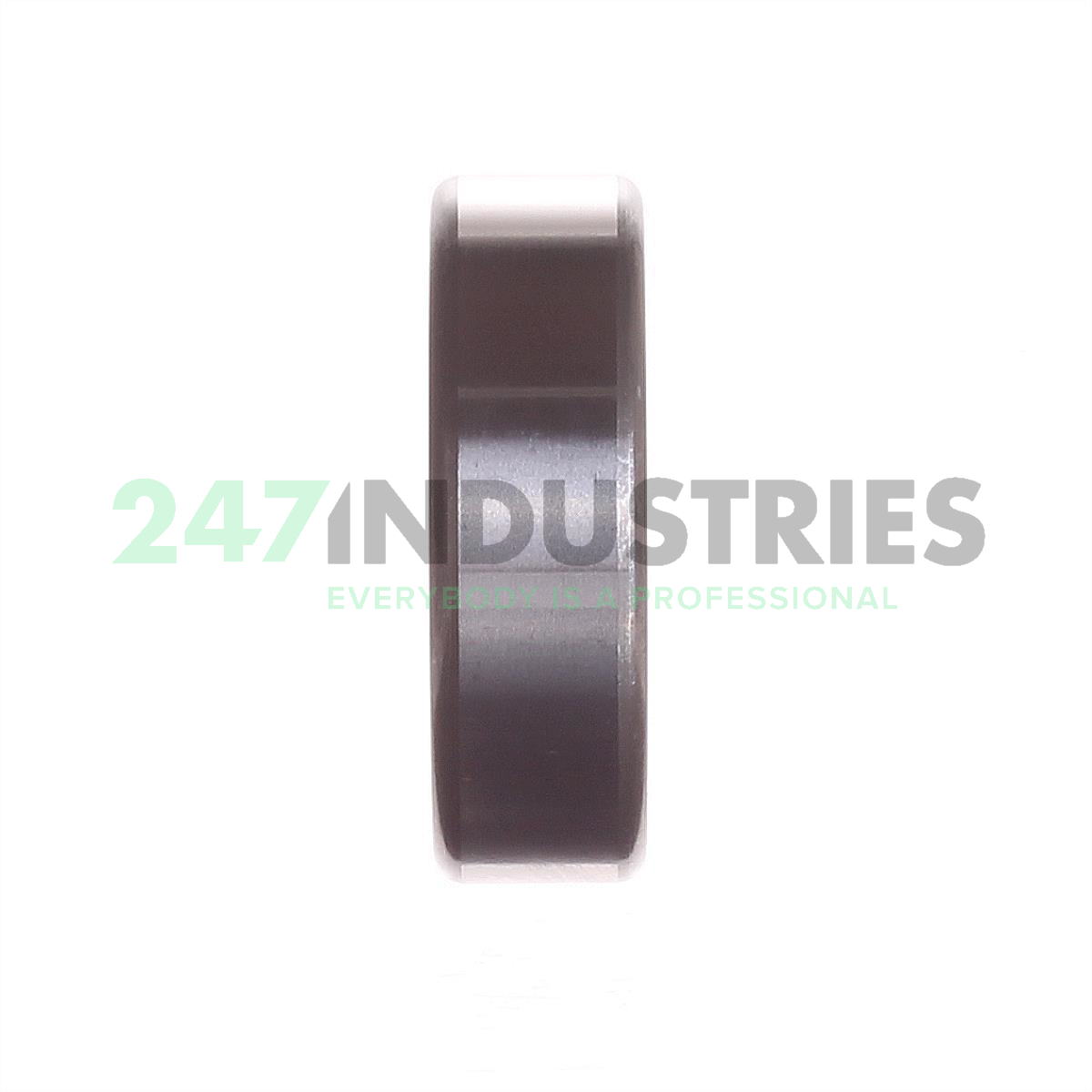

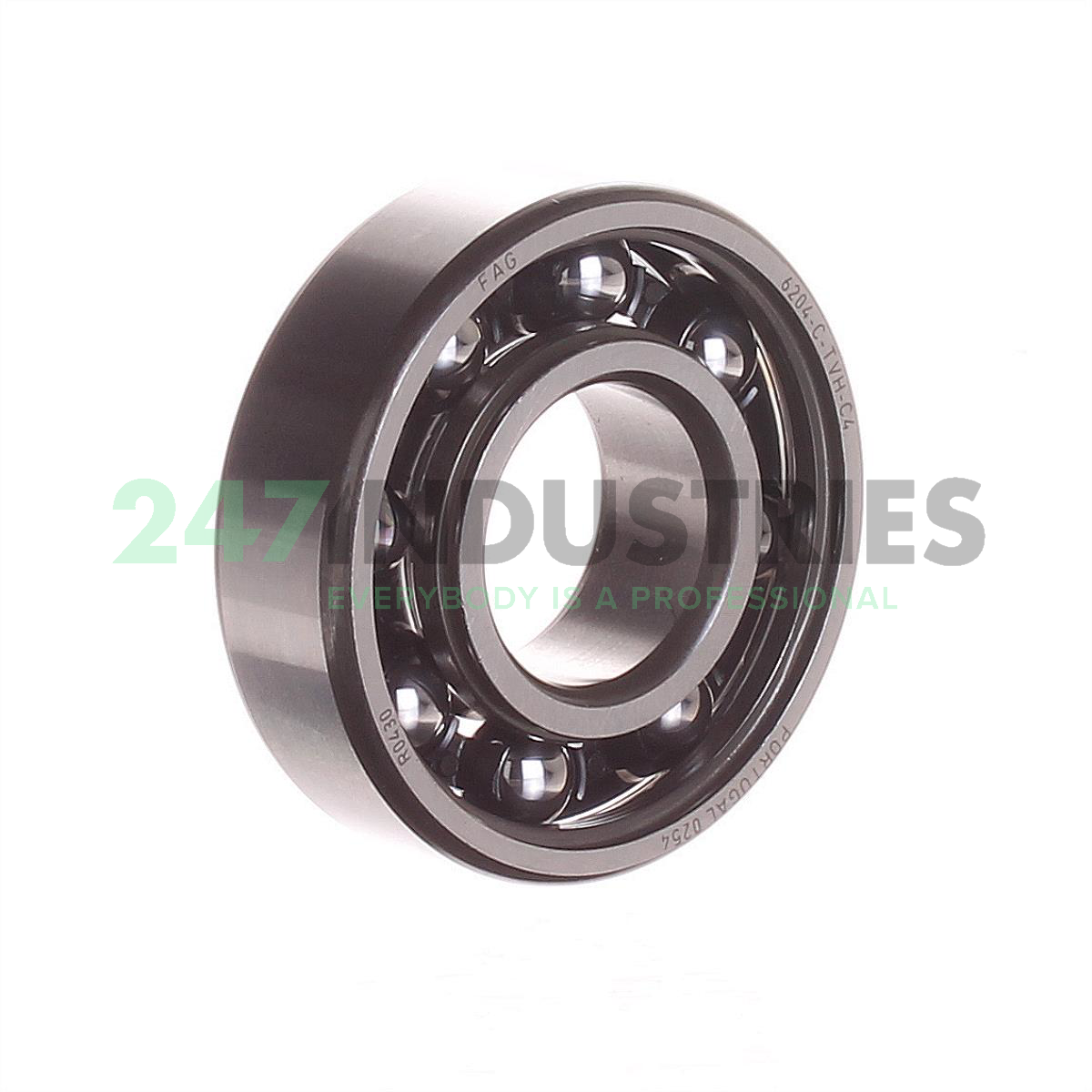

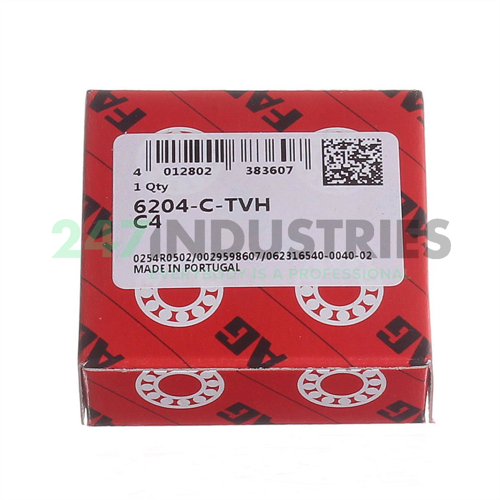

6204-C-TVH-C4 FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14,00

Suffix description

1. C Internal Design Modification
2. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 424 pcs
2. Brand FAG
3. Item number 6204-C-TVH-C4 FAG
4. Also known as 0623165400040
   0954045620040
   6204-TVH-C4

5. EAN 4012802383607
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.096

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13900
3. Basic static load rating, radial (C 0r) "6600.0000"
4. Limiting speed (n G) "24300.0000"
5. Reference speed (n ϑr) "18100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01

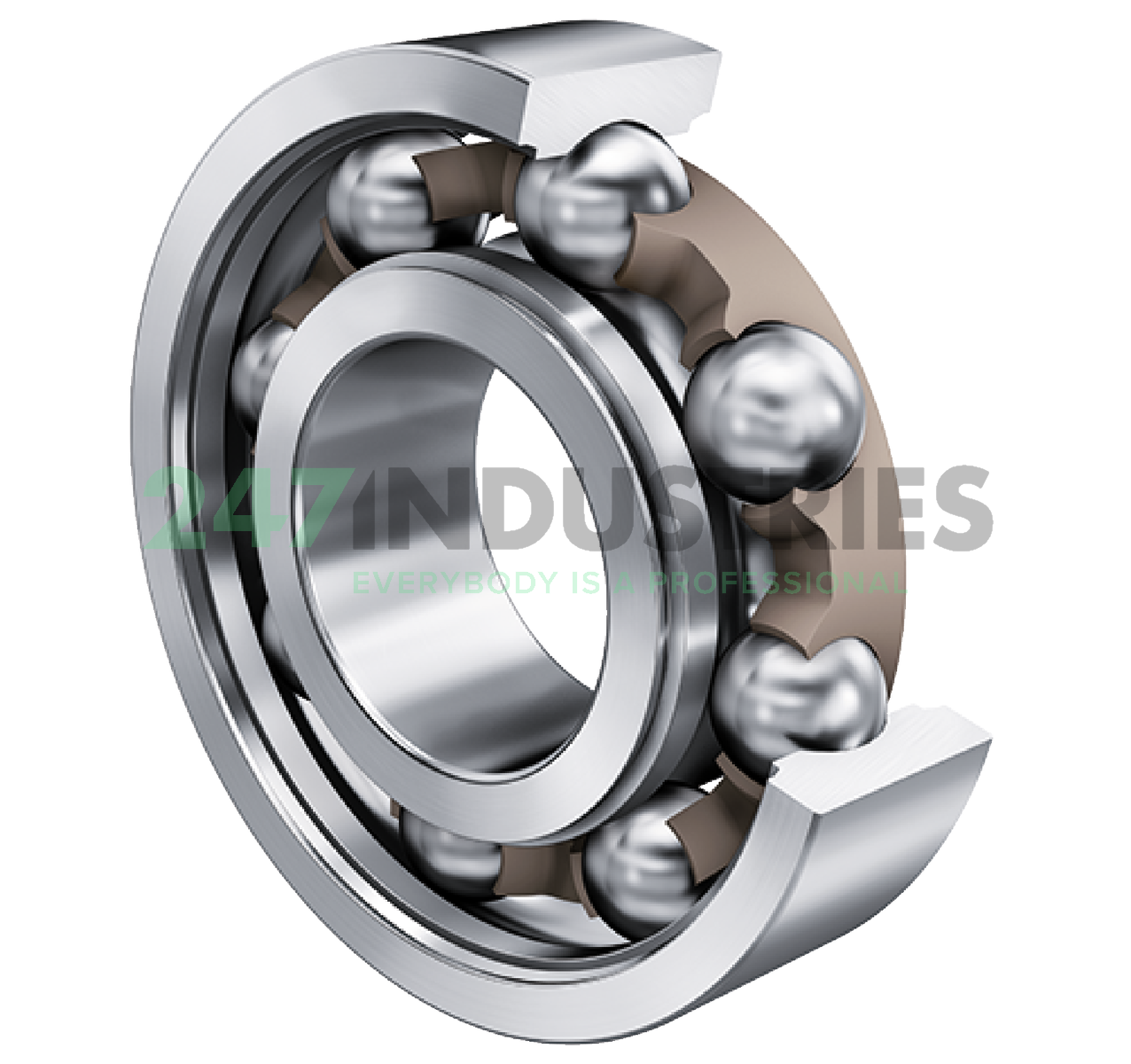

8. Medias description Deep groove ball bearing 62..-C-TVH, single row, cf. DIN 625-1
