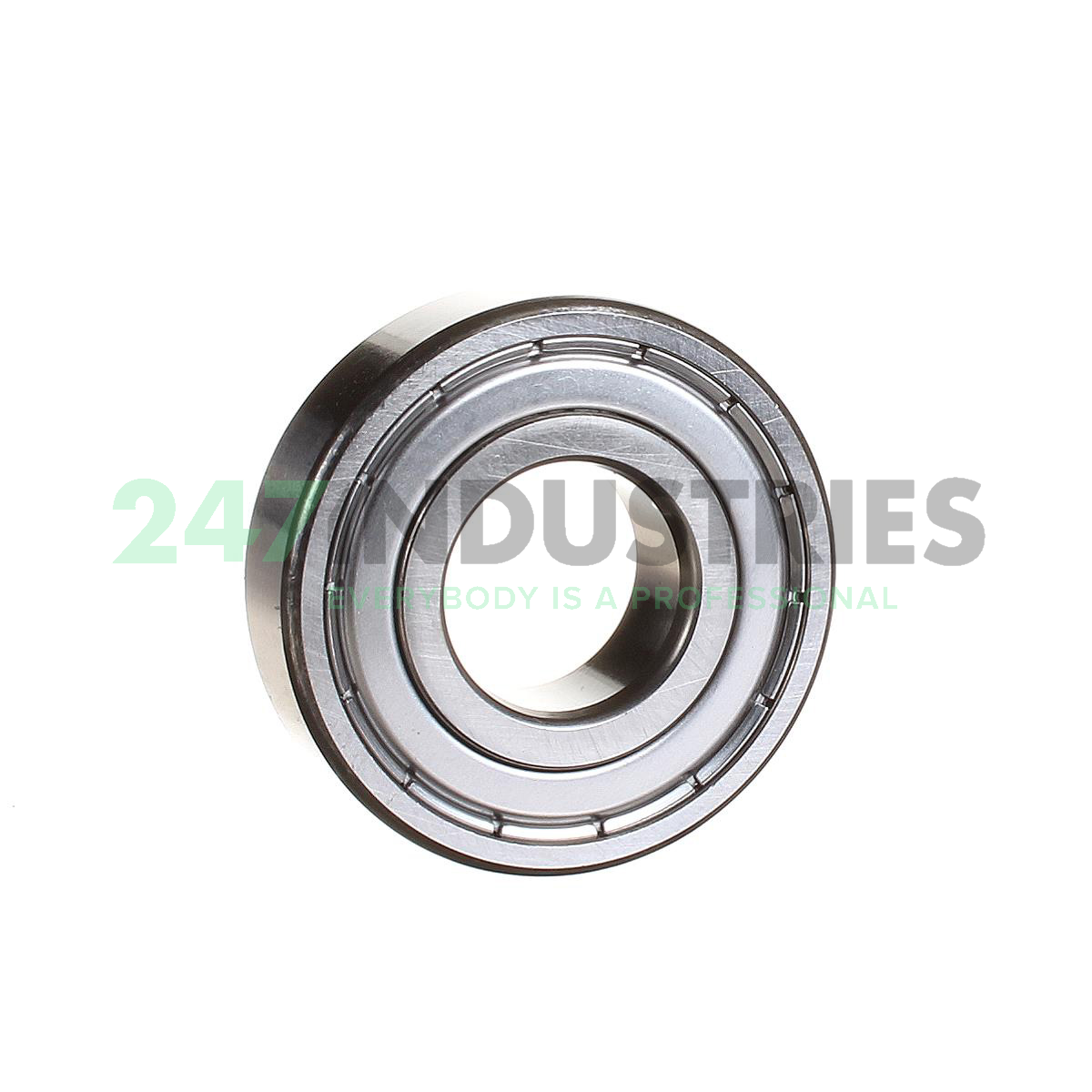

6204-2Z-N-C3 FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. N Snap Ring Groove In The Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6204-2Z-N-C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.107

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
