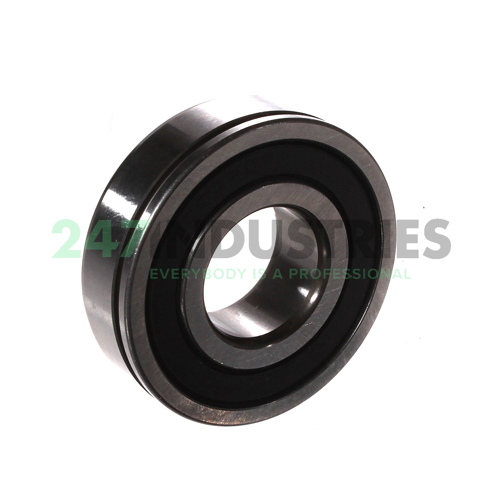

6204-2RSR-N FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14,00

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. N Snap Ring Groove In The Outer Ring

Technical details

1. Availability 96 pcs
2. Brand FAG
3. Item number 6204-2RSR-N FAG
4. Also known as 0382815890000

5. EAN 4026677003218
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "6600.0000"
2. Limiting speed (n G) "9300.0000"
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
