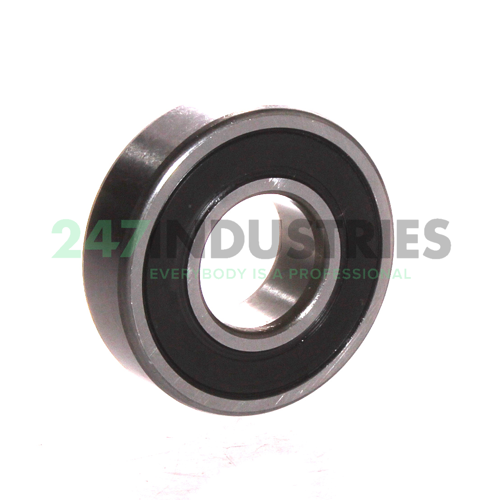

6204-2RSH/C4 SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. 2RSH RSH Contact Seal On Both Sides Of The Bearing
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 44 pcs
2. Brand SKF
3. Item number 6204-2RSH/C4 SKF
4. Also known as 6204-2RS1/C4
   6204-2RSR-C4
   6204-C-2HRS-C4

5. EAN 7316572105535
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
