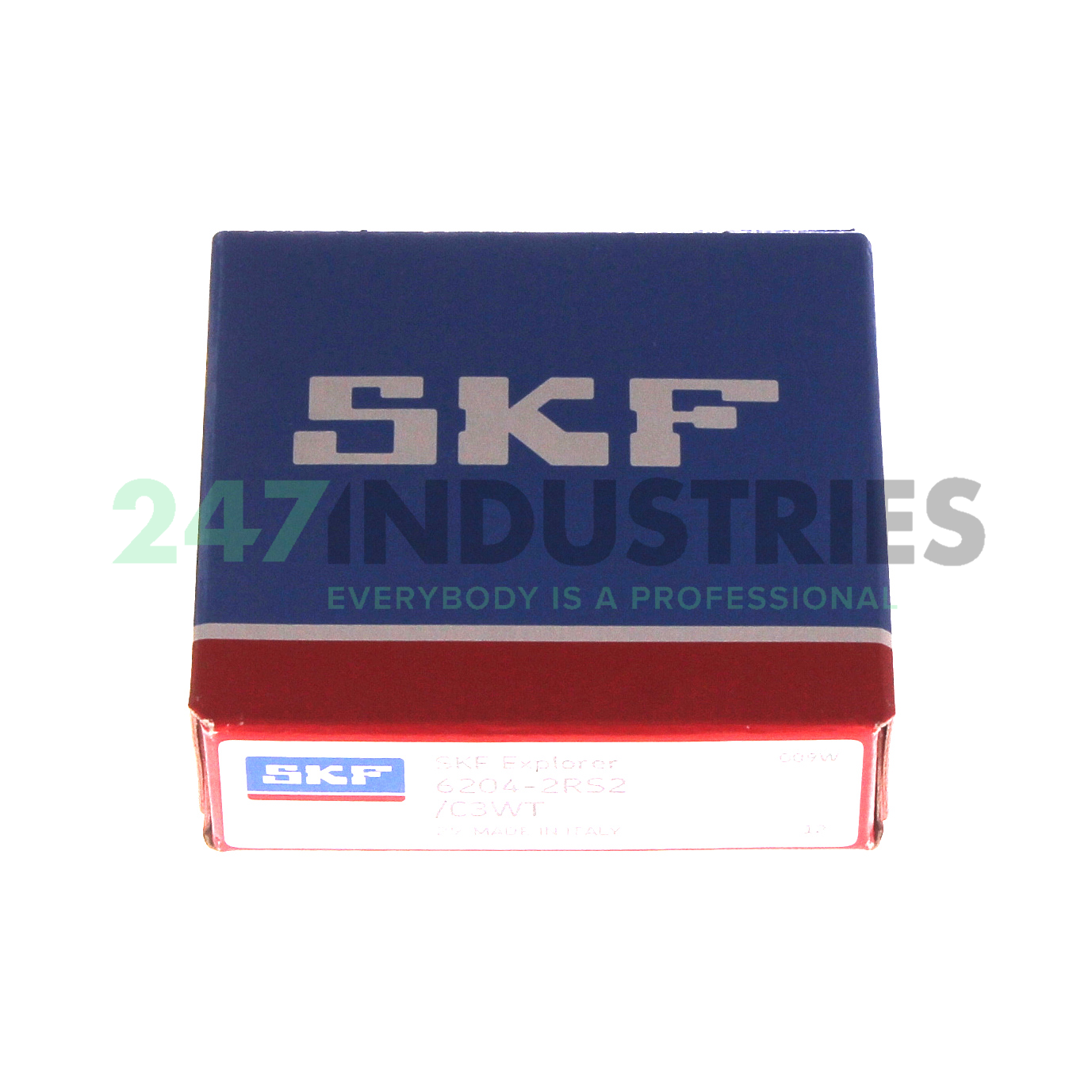

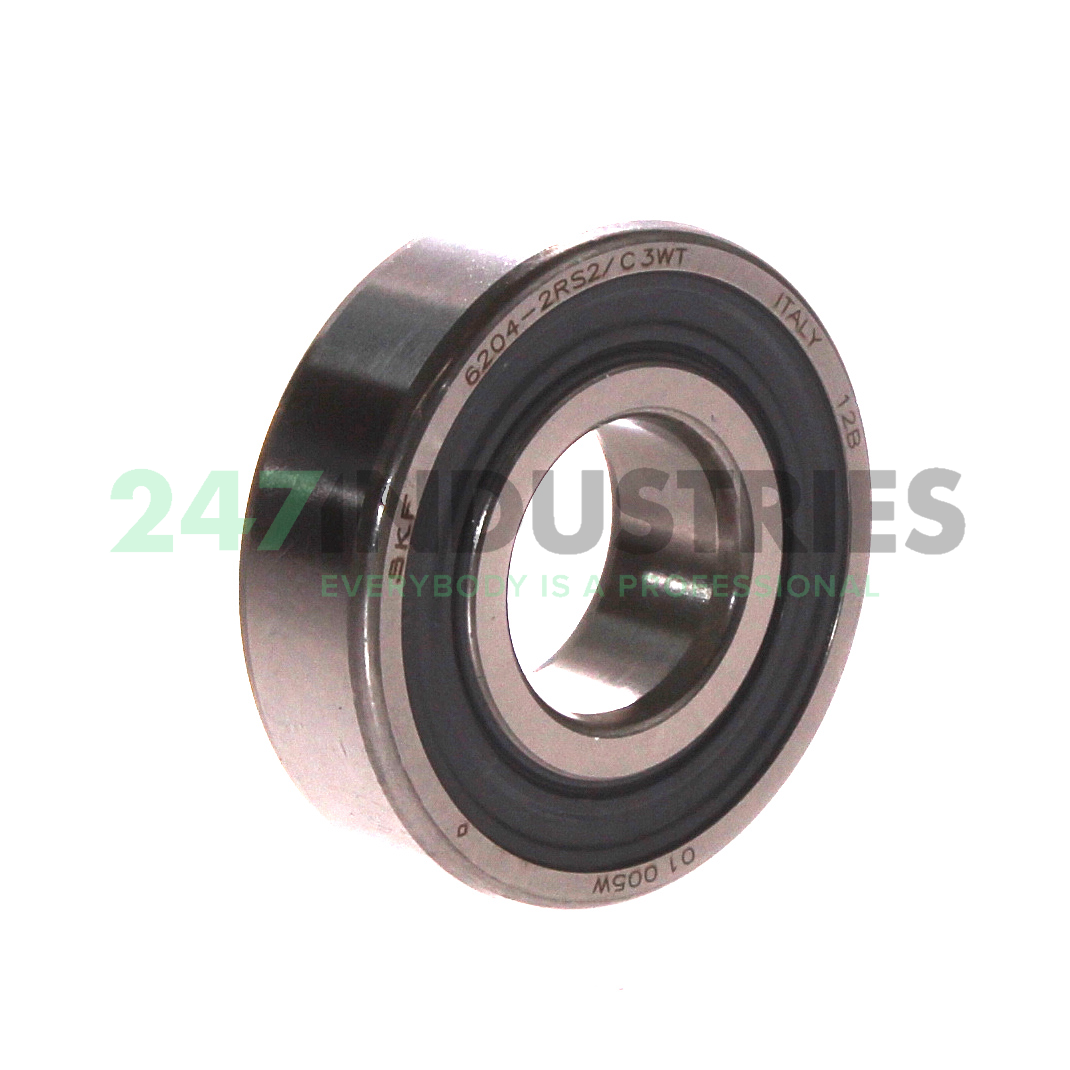

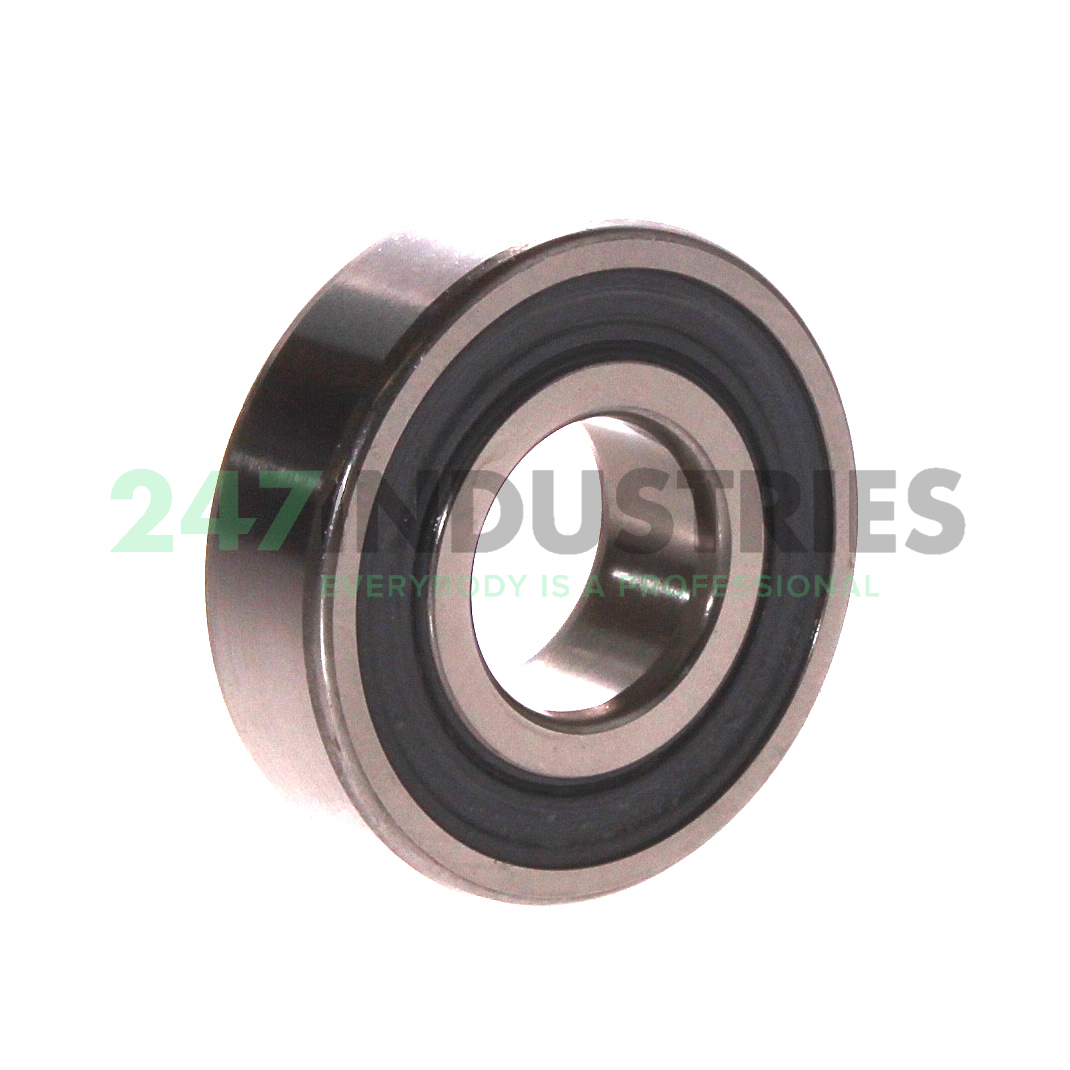

6204-2RS2/C3WT SKF

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. 2RS2 Two Contact Seals Of Fluoro Rubber (FPM) With Sheet Steel Reinforcement (High Temp)
2. C3 Internal Clearance Larger Than Normal
3. WT Grease Fill For Low As Well As High Temperature e.g. Range -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under “HT” Identifies Filling Degrees Other Than Standard

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 6204-2RS2/C3WT SKF
4. Also known as 6204-2RS2/C3

5. EAN 7316570643060
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS2 - Fluoro Rubber Seals / High Temperature
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
