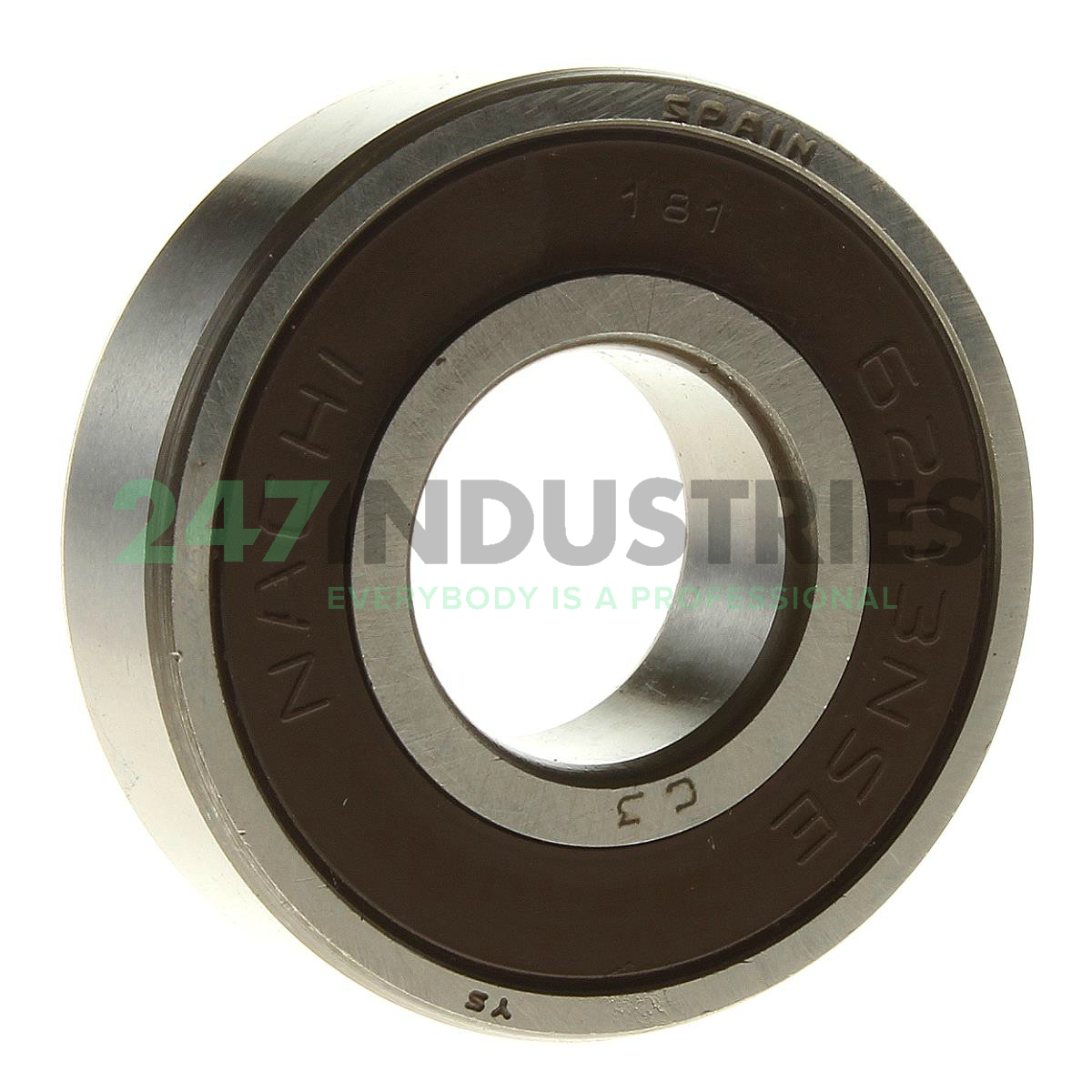

6203NSE C3 Nachi

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724

Suffix description

1. NSE Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On One Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 7 pcs
2. Brand Nachi
3. Item number 6203NSE C3 Nachi
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.064

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
