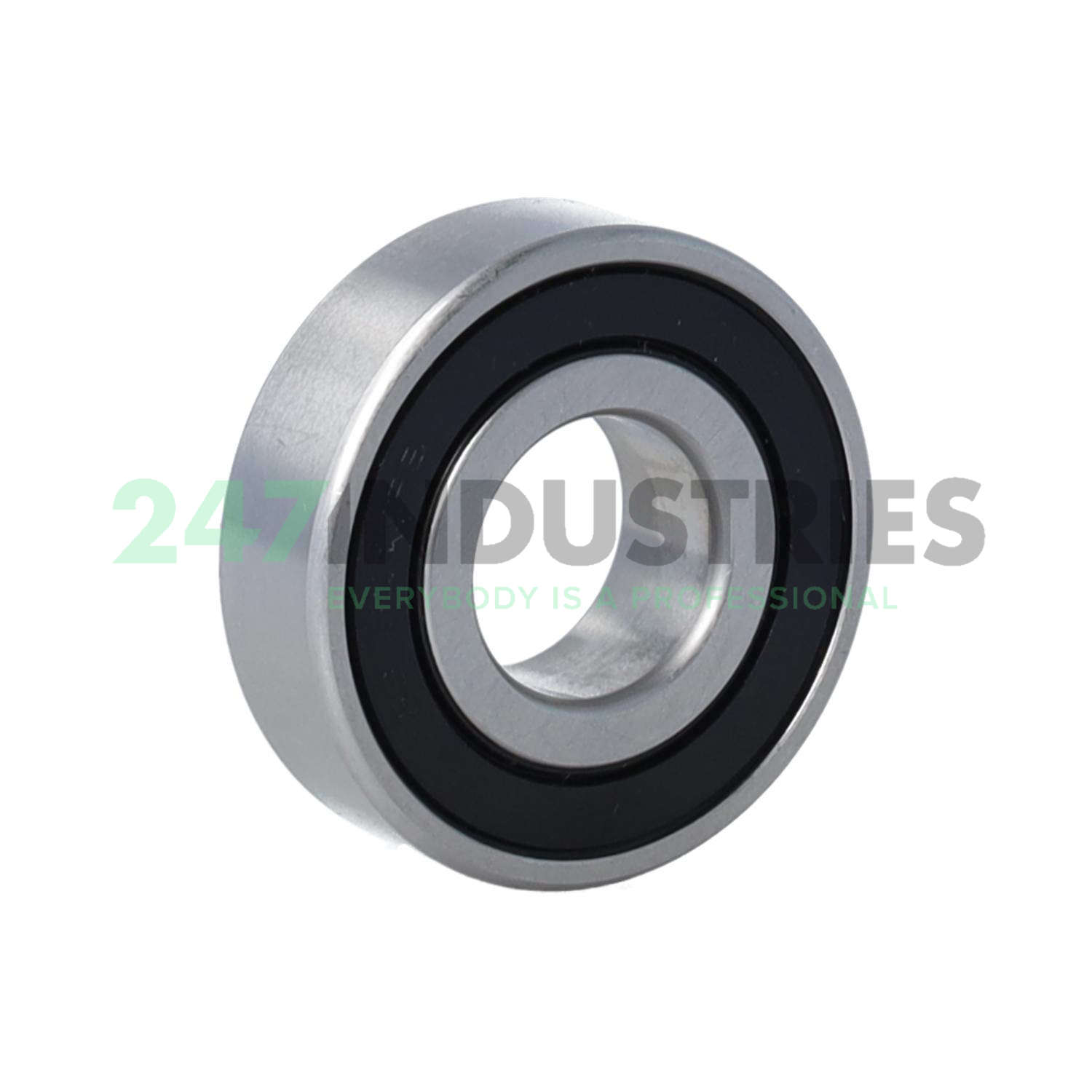

6203H-2RS/F Timken

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724

Suffix description

1. H Stainless Steel
2. 2RS Rubber Seals At Each Side Of The Bearing
3. F Standard Food Safe Grease

Technical details

1. Availability 14 pcs
2. Brand Timken
3. Item number 6203H-2RS/F Timken
4. Also known as S6203-2RSR-FD

5. EAN 0013992220424
6. Category Stainless Steel Ball Bearings

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Food Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
