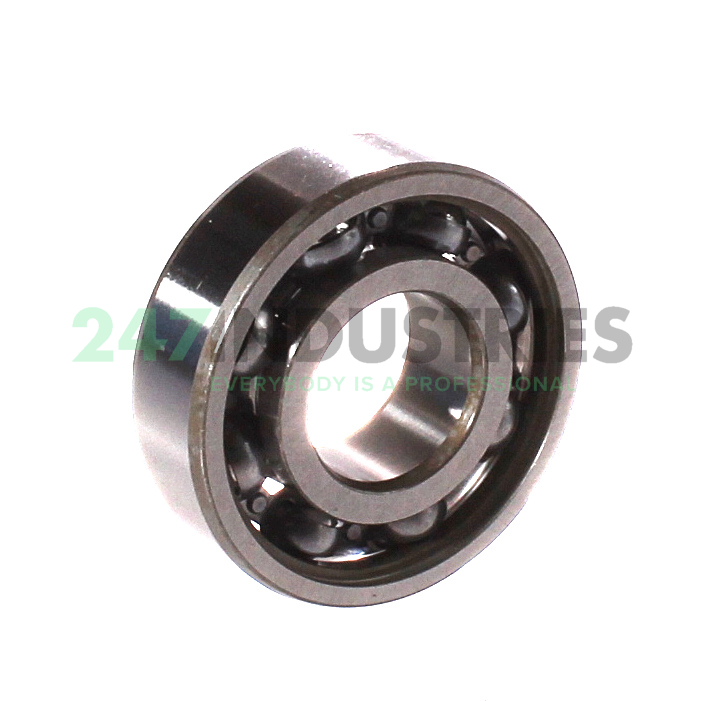

6203.C3 SNR

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724

Suffix description

1. EE Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand SNR
3. Item number 6203.C3 SNR
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
