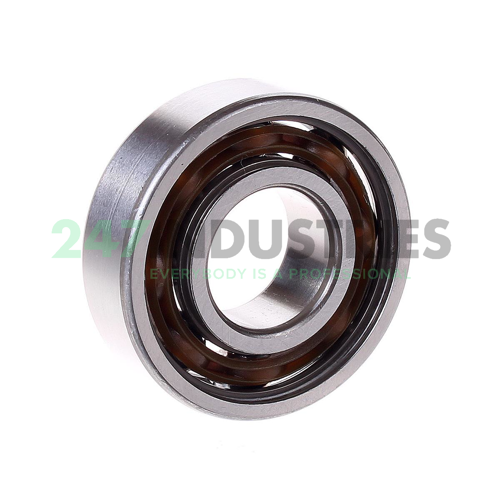

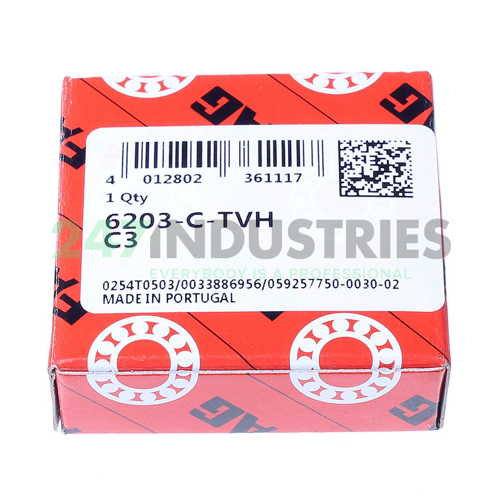

6203-C-TVH-C3 FAG

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724
7. Width (b) mm 12

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 65 pcs
2. Brand FAG
3. Item number 6203-C-TVH-C3 FAG
4. Also known as 0592577500030
   0956623400030
   6203-TVH-C3

5. EAN 4012802361117
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10400
3. Limiting speed (n G) 29000
4. Reference speed (n ϑr) 20100
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-C-TVH, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
