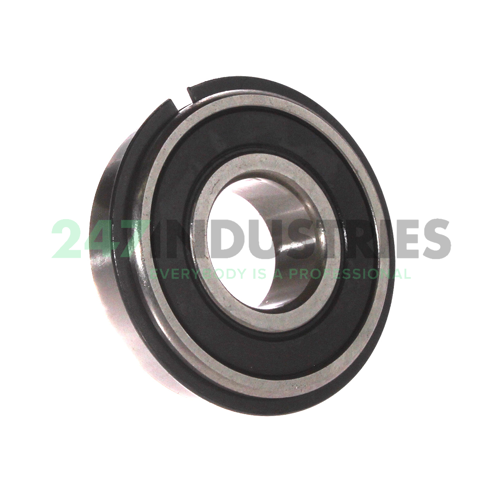

6203-2RS-NR-C3 Timken

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 14 pcs
2. Brand Timken
3. Item number 6203-2RS-NR-C3 Timken
4. EAN 0013992162267
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.068

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
