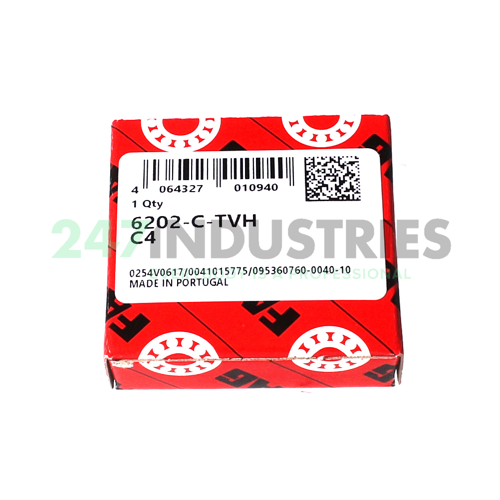

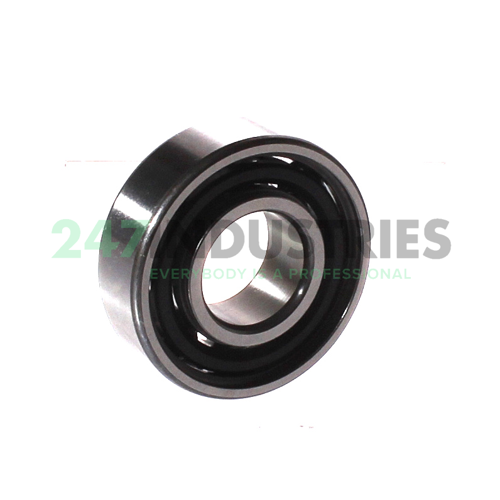

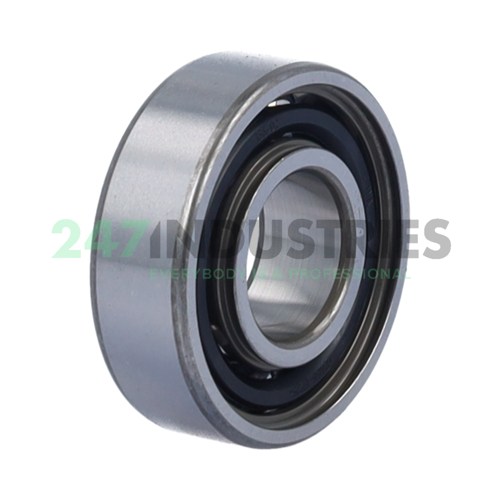

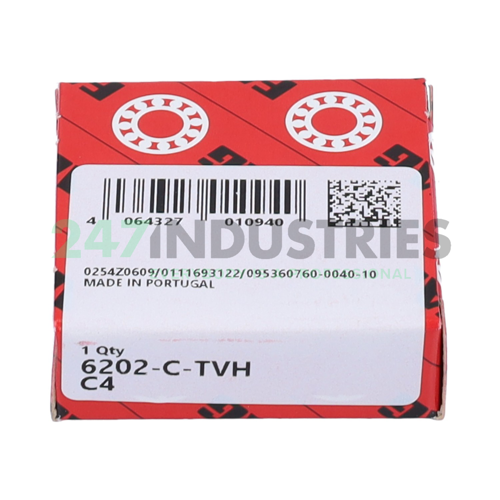

6202-C-TVH-C4 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 35
3. Width (B) MM 11
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.4331

Suffix description

1. C Internal Design Modification
2. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 115 pcs
2. Brand FAG
3. Item number 6202-C-TVH-C4 FAG
4. Also known as 0953607600040
   6202-TVH-C4

5. EAN 4064327010940
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.045

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3750
2. Radial Dynamic Load Rating Cr (N) 8900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 62..-C-TVH, single row, cf. DIN 625-1
