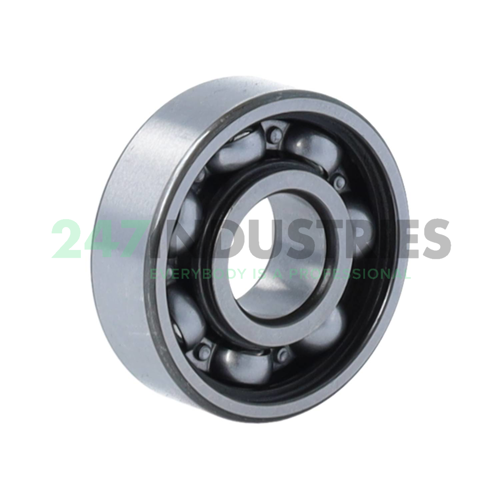

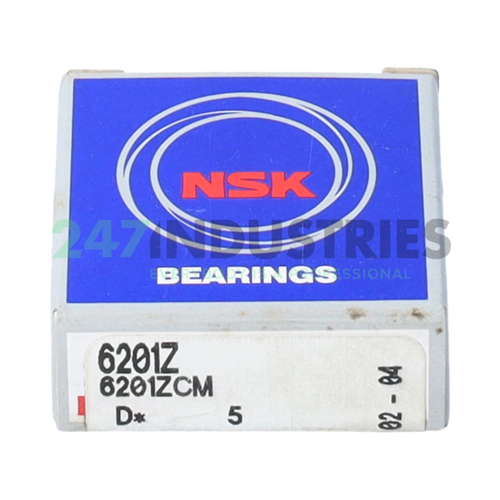

6201ZCM NSK

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 32
3. Width (B) MM 10
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3937

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 500 pcs
2. Brand NSK
3. Item number 6201ZCM NSK
4. Also known as 6201-Z/QE6

5. EAN 00029176063954
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.037

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
