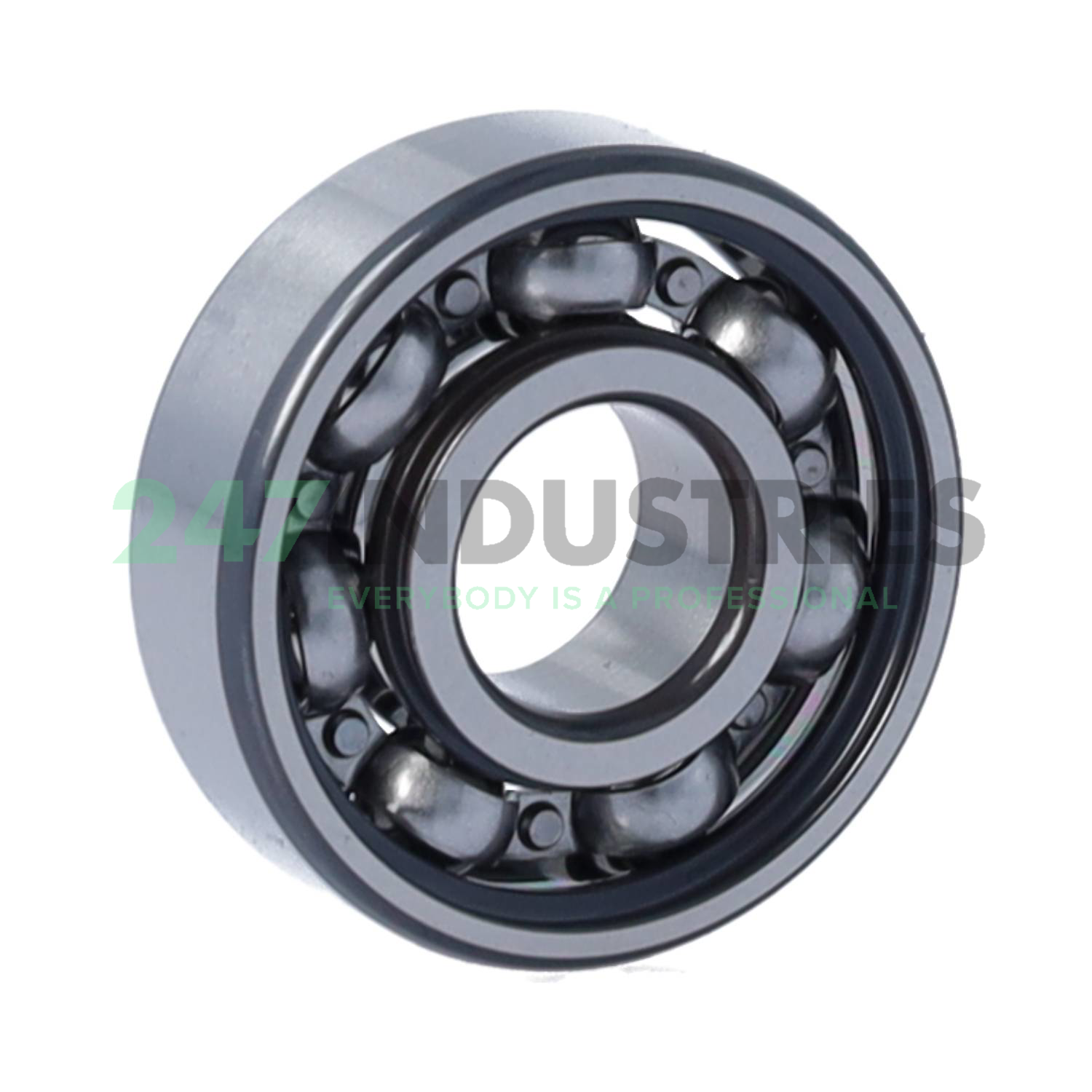

6201-C-C3 FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 32
3. Width (B) MM 10
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 212 pcs
2. Brand FAG
3. Item number 6201-C-C3 FAG
4. Also known as 0594266590030
   0956611820030
   6201/C3
   6201-C3

5. EAN 4012802363838
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.036

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3100
2. Radial Dynamic Load Rating Cr (N) 7600
3. Limiting speed (n G) 37000
4. Reference speed (n ϑr) 24600
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-C, single row, cf. DIN 625-1
