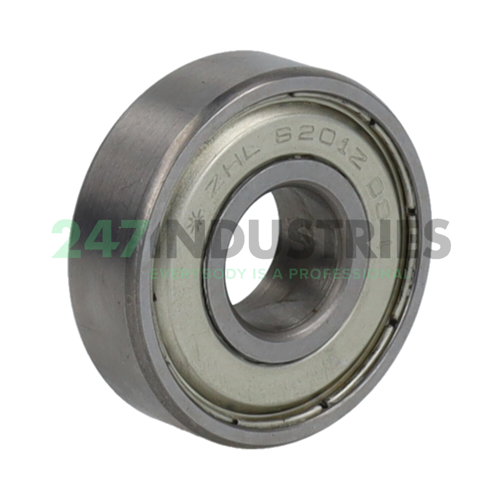

6201-2Z-P6-L077-HLT-R FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 32
3. Width (B) MM 10

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
3. L077 High Temperature Grease For High Loads, -40 ~ 260°
4. HLT Factory Location Code, No Additional Meaning, Can Be Used As Standard
5. R18-25 Radial Clearance In μm

Technical details

1. Availability 96 pcs
2. Brand FAG
3. Item number 6201-2Z-P6-L077-HLT-R FAG
4. Also known as 6201-2Z-P6-L077HLT-R18-23

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.037

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Special Internal Clearance
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
