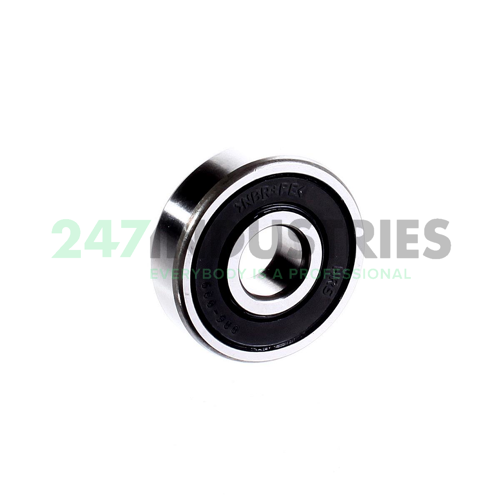

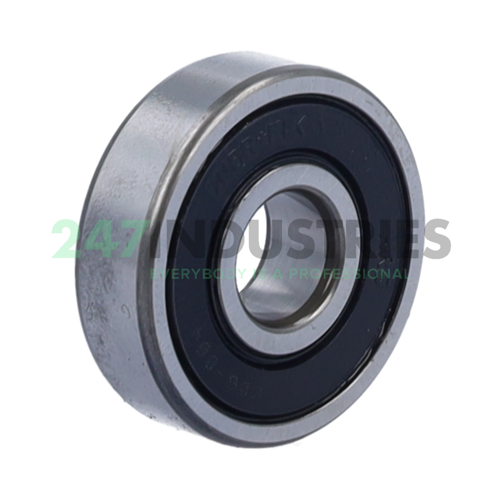

6200-C-2HRS FAG

All dimensions

1. Outer (D) MM 30
2. Width (B) MM 9
3. Outer (D) Inch 1.1811
4. Width (B) Inch 0.3543

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal

Technical details

1. Availability 2,406 pcs
2. Brand FAG
3. Item number 6200-C-2HRS FAG
4. Also known as 0621487960000
   0956623910000
   6200-2RS1
   6200-2RSH
   6200-2RSR
   6200-C-2HRS#E

5. EAN 4012802383416
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0317

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
