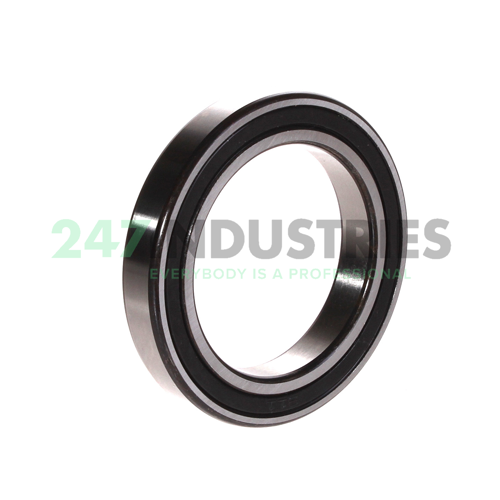

61911-2RZ-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 80
3. Width (B) MM 13
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 100 pcs on Tue 19 May
2. Brand FAG
3. Item number 61911-2RZ-C3 FAG
4. Also known as 0838998040030

5. EAN 4054369772258
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.19

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 14100
2. Radial Dynamic Load Rating Cr (N) 17700
3. Limiting speed (n G) 10300
4. Reference speed (n ϑr) 7500
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 619..-2RZ, Main dimensions to DIN 625-1, non-contact radial seals on both sides
