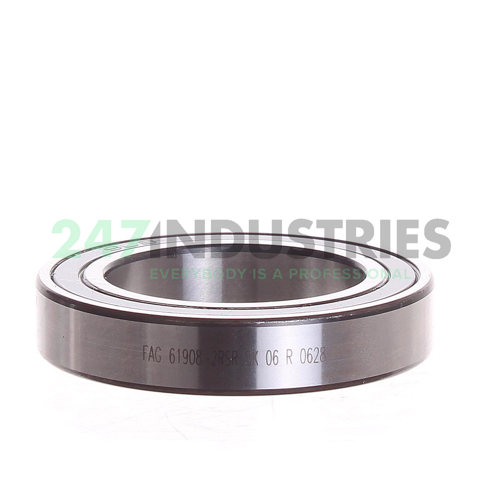

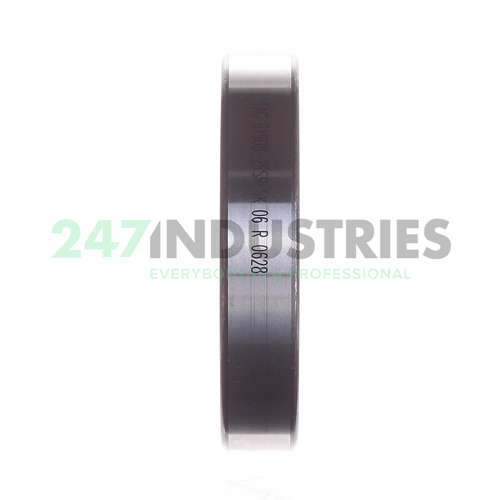

61908-2RSR FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 12
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.4724
7. Width (b) mm 12

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 61908-2RSR FAG
4. Also known as 0797519970000

5. EAN 4047643335003
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.115

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9900
2. Radial Dynamic Load Rating Cr (N) 14500
3. Limiting speed (n G) 5700
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearings 619..-2RSR, main dimensions to DIN 625-1, lip seals on both sides
