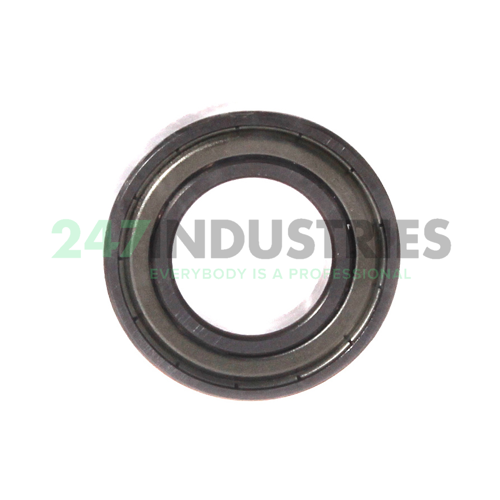

61902-2Z-HLC-C3 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 28
3. Width (B) MM 7
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.2756
7. Width (b) mm 7

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 97 pcs
2. Brand FAG
3. Item number 61902-2Z-HLC-C3 FAG
4. Also known as 0551926290030
   61902-2Z-C3

5. EAN 4012802402896
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.016

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2250
2. Radial Dynamic Load Rating Cr (N) 4330
3. Limiting speed (n G) 32000
4. Reference speed (n ϑr) 20600
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 619..-2Z, main dimensions to DIN 625-1, gap seals on both sides
