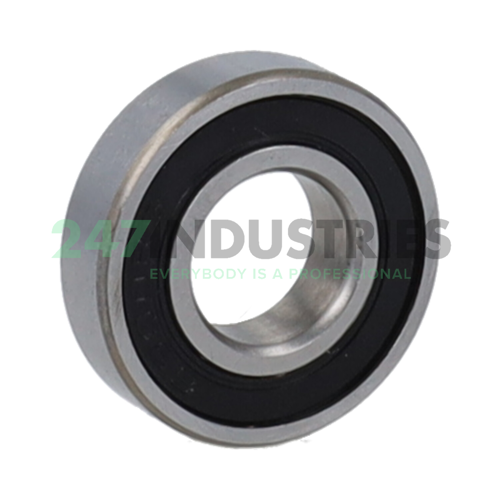

61900 2RS C3 FSY

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 22
3. Width (B) MM 6
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.2362

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 64 pcs
2. Brand FSY
3. Item number 61900 2RS C3 FSY
4. Also known as 61900-2RS1/C3
   61900-2RSR-C3
   6900 2RS C3
   6900DDUC3
   6900EEC3
   6900LLUC3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0082

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
