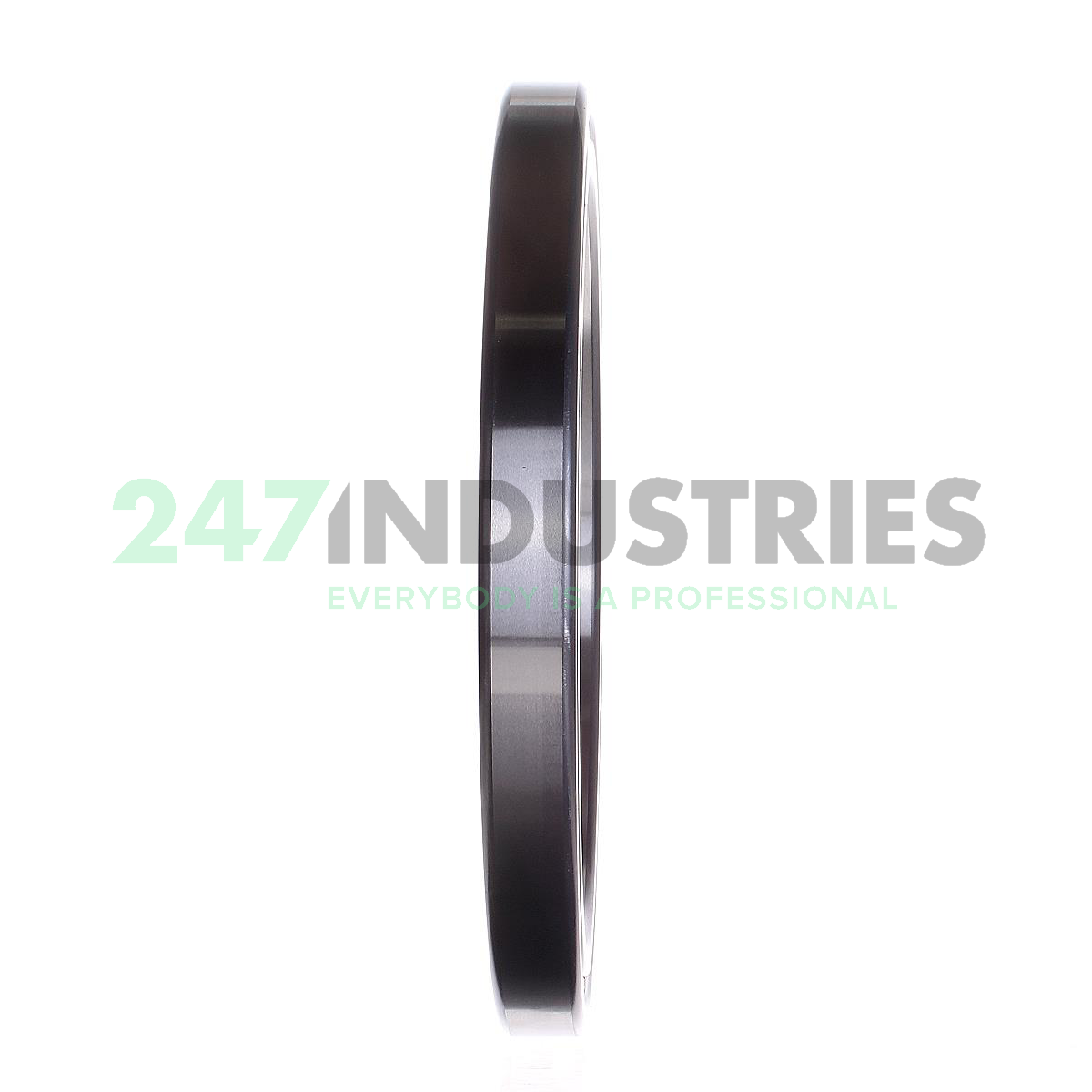

61852-M FAG

All dimensions

1. Inner (d) MM 260
2. Outer (D) MM 320
3. Width (B) MM 28
4. Inner (d) Inch 10.2362
5. Outer (D) Inch 12.5984
6. Width (B) Inch 1.1024
7. Width (b) mm 28

Suffix description

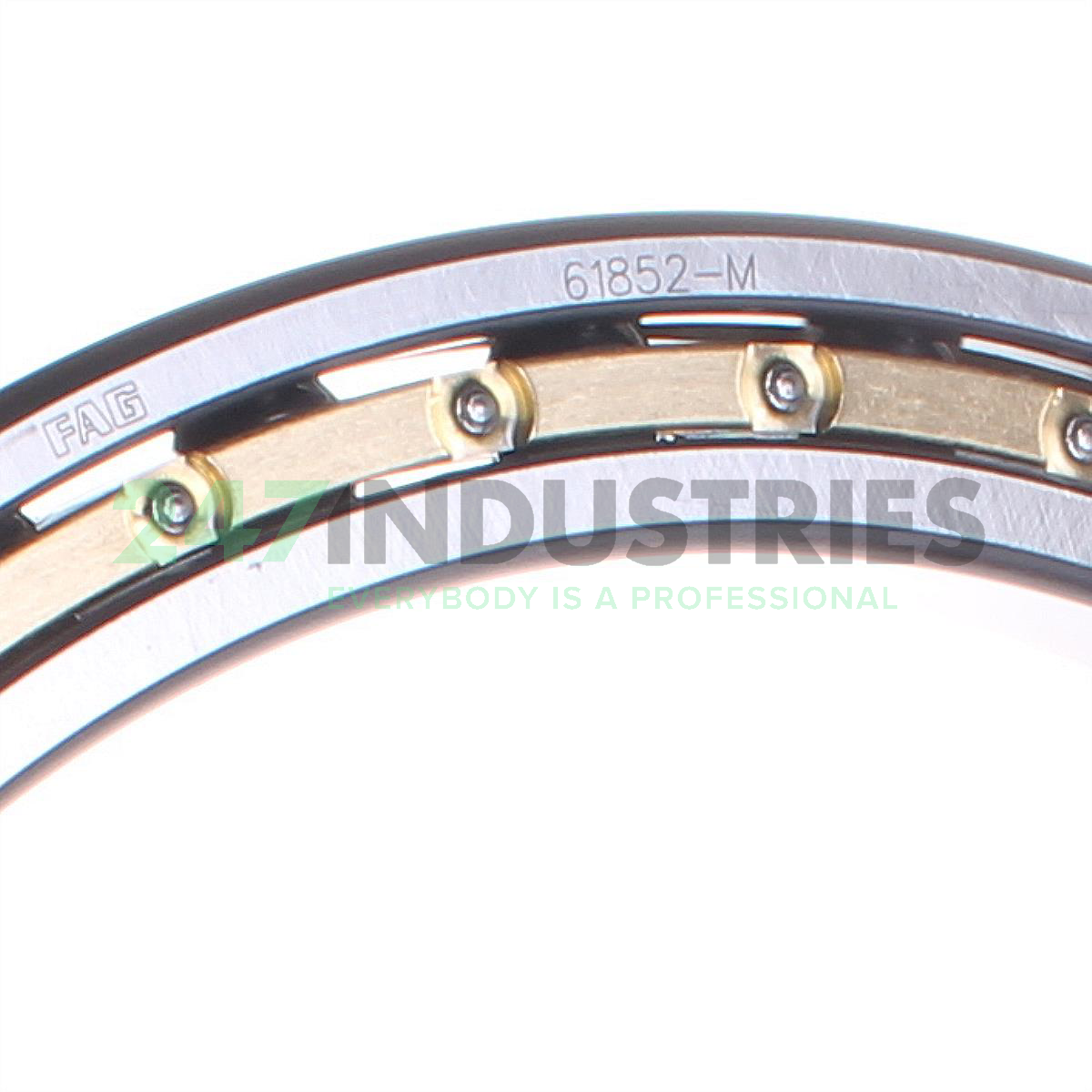

1. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number 61852-M FAG
4. Also known as 0167191820000

5. EAN 4012801202619
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 5.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 132000
2. Radial Dynamic Load Rating Cr (N) 102000
3. Limiting speed (n G) 3500
4. Reference speed (n ϑr) 2070
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 618..-M, single row, cf. DIN 625-1
