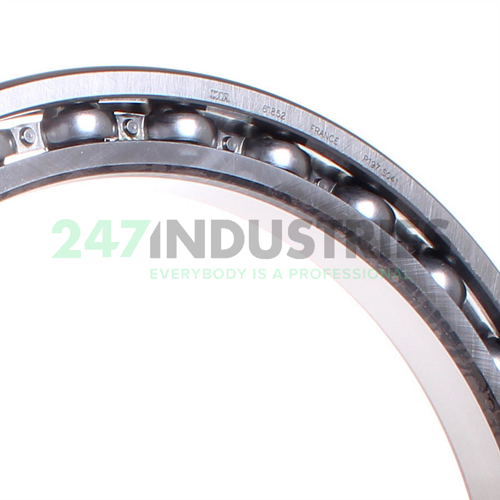

61852-HLU INA

All dimensions

1. Inner (d) MM 260
2. Outer (D) MM 320
3. Width (B) MM 28
4. Inner (d) Inch 10.2362
5. Outer (D) Inch 12.5984
6. Width (B) Inch 1.1024
7. Width (b) mm 28

Suffix description

1. HLU Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 36 pcs
2. Brand INA
3. Item number 61852-HLU INA
4. Also known as 0096206990000
   61852
   6852

5. EAN 4047643189323
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 5.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 132000
2. Radial Dynamic Load Rating Cr (N) 102000
3. Limiting speed (n G) 2650
4. Reference speed (n ϑr) 2060
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 618, single row, cf. DIN 625-1
