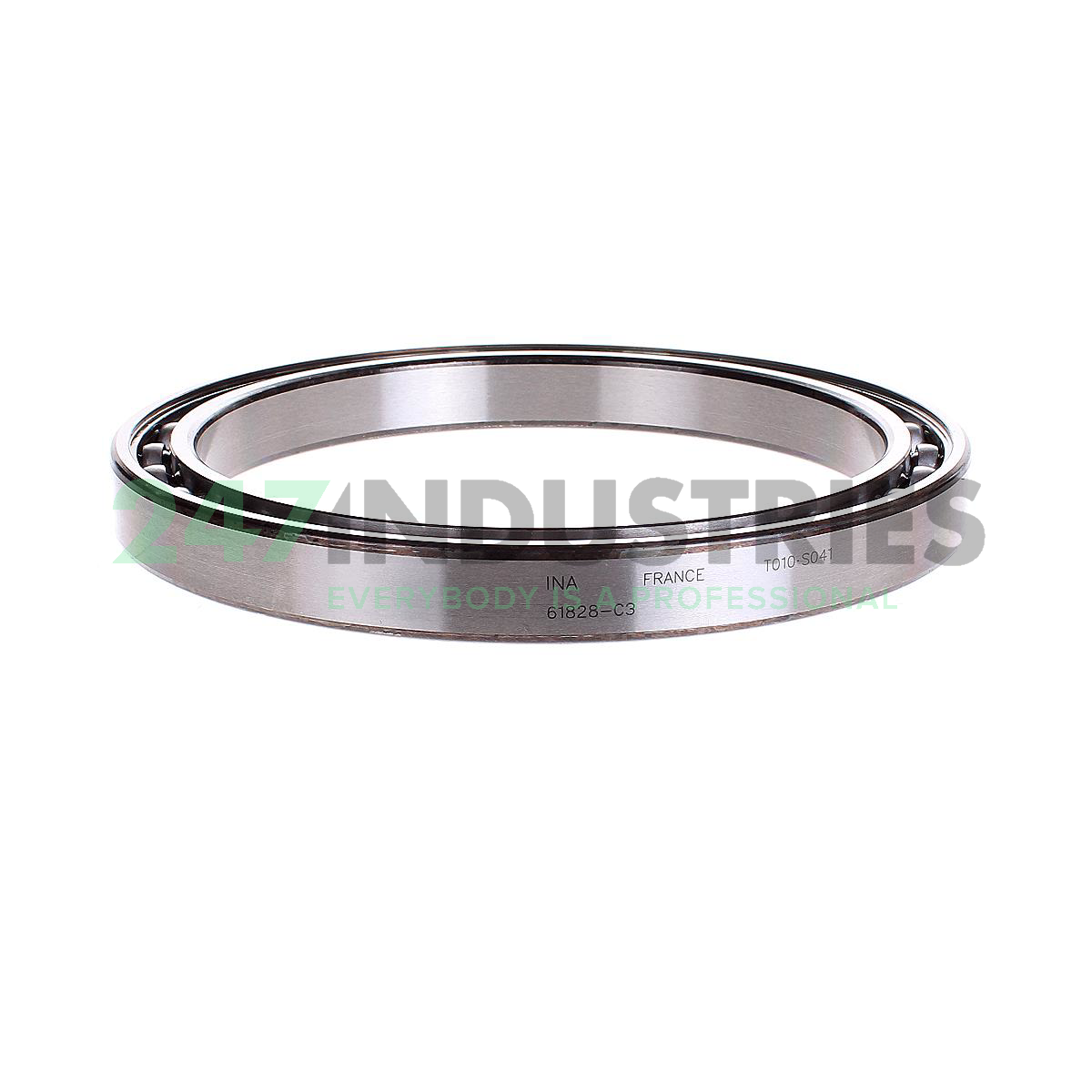

61828-HLU-C3 INA

All dimensions

1. Inner (d) MM 140
2. Outer (D) MM 175
3. Width (B) MM 18
4. Inner (d) Inch 5.5118
5. Outer (D) Inch 6.8898
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. HLU Factory Location Code, No Additional Meaning, Can Be Used As Standard
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number 61828-HLU-C3 INA
4. Also known as 0096644590030

5. EAN 4054362001492
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.99

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43500
2. Radial Dynamic Load Rating Cr (N) 38500
3. Limiting speed (n G) 5100
4. Reference speed (n ϑr) 3350
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 618, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
