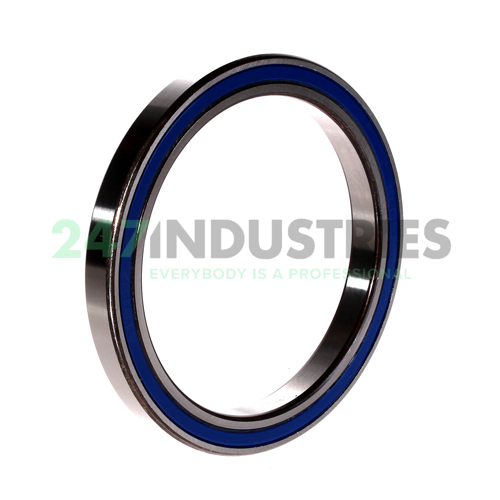

61819-2RZ-Y-L460 FAG

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 120
3. Width (B) MM 13
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. Y Sheet Brass Cage, Rolling Element Guided
3. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 61819-2RZ-Y-L460 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 21300
2. Radial Dynamic Load Rating Cr (N) 21000
3. Limiting speed (n G) 6600
4. Reference speed (n ϑr) 4350
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 618..-2RZ-Y, single row, cf. DIN 625-1
