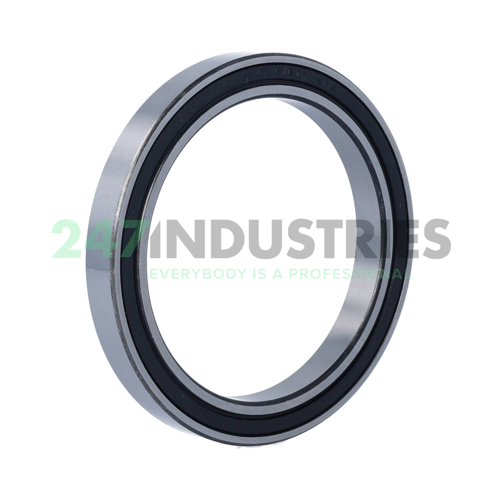

61817 2RS C3 FSY

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 110
3. Width (B) MM 13
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.5118

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand FSY
3. Item number 61817 2RS C3 FSY
4. Also known as 6817 2RS C3
   6817DDUC3
   6817EEC3
   6817LLUC3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.272

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
