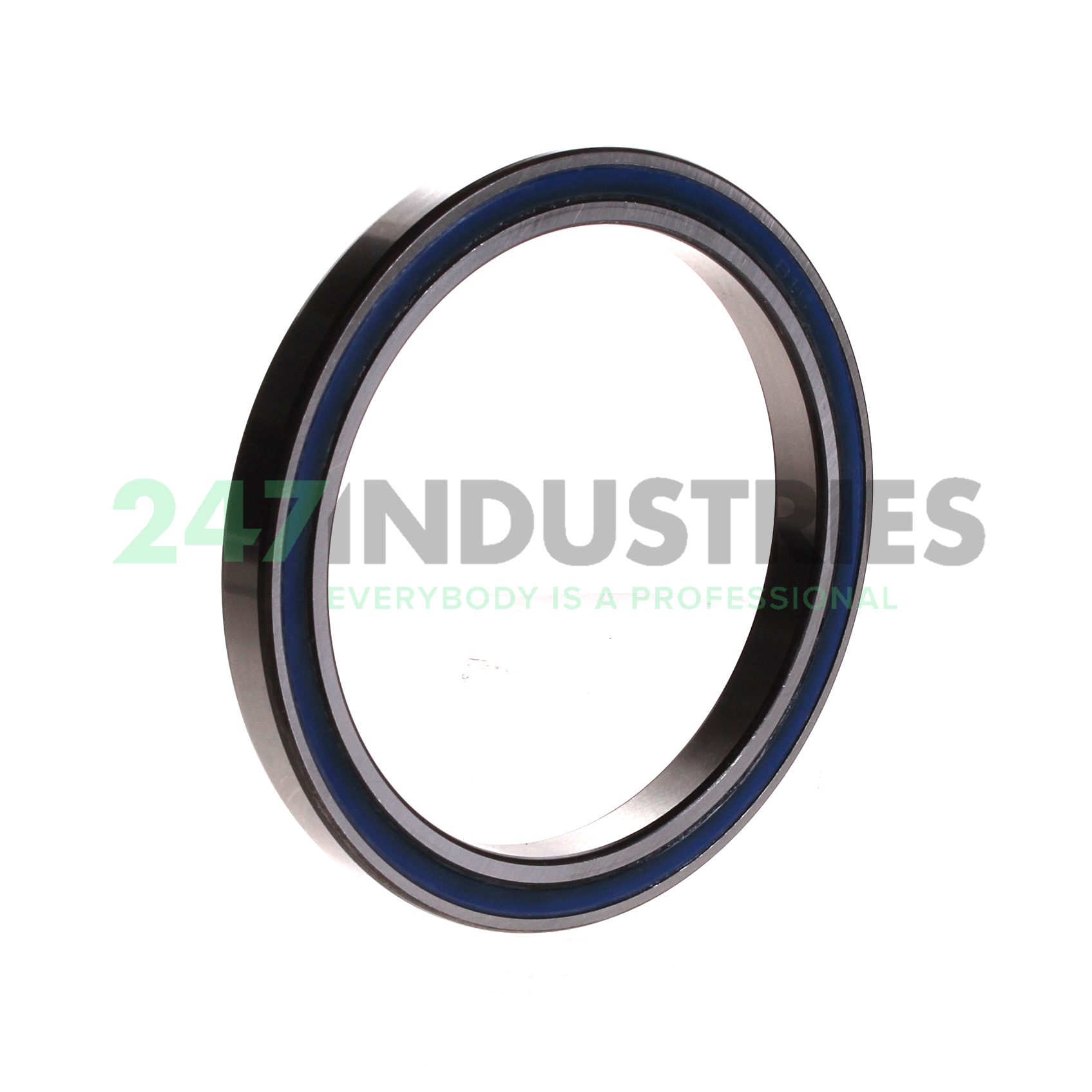

61816-2RZ-Y FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 100
3. Width (B) MM 10
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. Y Sheet Brass Cage, Rolling Element Guided

Technical details

1. Availability 9 pcs
2. Brand FAG
3. Item number 61816-2RZ-Y FAG
4. Also known as 0807194220000

5. EAN 4047643313162
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13800
2. Radial Dynamic Load Rating Cr (N) 13800
3. Limiting speed (n G) 8000
4. Reference speed (n ϑr) 4600
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 618..-2RZ-Y, single row, cf. DIN 625-1
