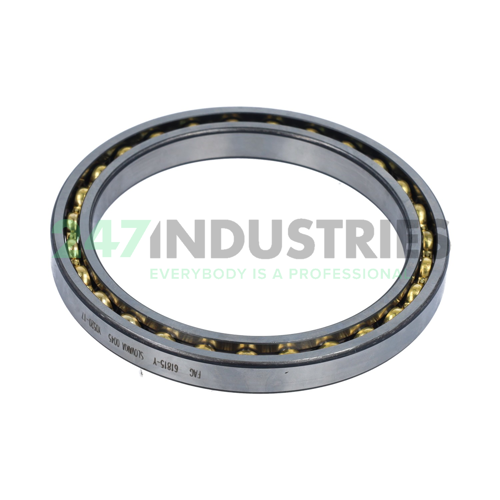

61815-Y FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 95
3. Width (B) MM 10
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. Y Pressed Brass Retainer, Rolling Element Guided

Technical details

1. Availability 20 pcs on Thu 24 Sep
2. Brand FAG
3. Item number 61815-Y FAG
4. Also known as 0096196580000

5. EAN 4047643333160
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13400
2. Radial Dynamic Load Rating Cr (N) 13700
3. Limiting speed (n G) 13000
4. Reference speed (n ϑr) 4950
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 618, main dimensions to DIN 625-1
