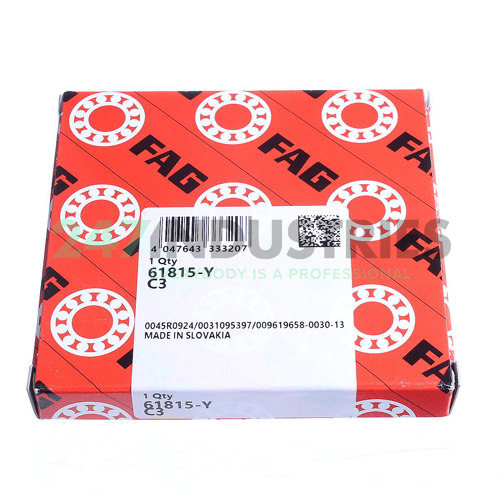

61815-Y-C3 FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 95
3. Width (B) MM 10
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. Y Sheet Brass Cage, Rolling Element Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 36 pcs
2. Brand FAG
3. Item number 61815-Y-C3 FAG
4. Also known as 0096196580030

5. EAN 4047643333207
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13400
2. Radial Dynamic Load Rating Cr (N) 13700
3. Limiting speed (n G) 13000
4. Reference speed (n ϑr) 4950
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 618, main dimensions to DIN 625-1
