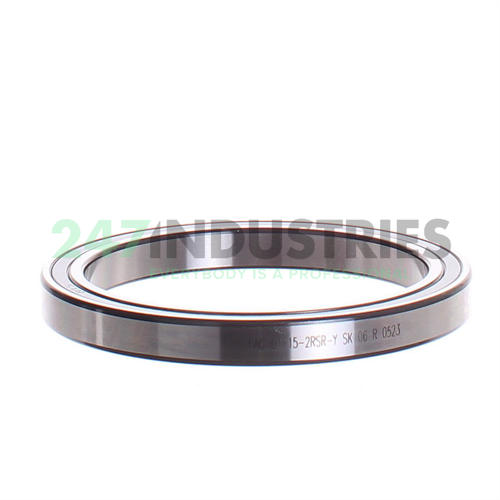

61815-2RSR-Y FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 95
3. Width (B) MM 10
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. Y Sheet Brass Cage, Rolling Element Guided

Technical details

1. Availability 26 pcs
2. Brand FAG
3. Item number 61815-2RSR-Y FAG
4. Also known as 0807287150000

5. EAN 4047643335294
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.143

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13400
2. Radial Dynamic Load Rating Cr (N) 13700
3. Limiting speed (n G) 3300
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearings 618..-2RSR, main dimensions to DIN 625-1, lip seals on both sides
