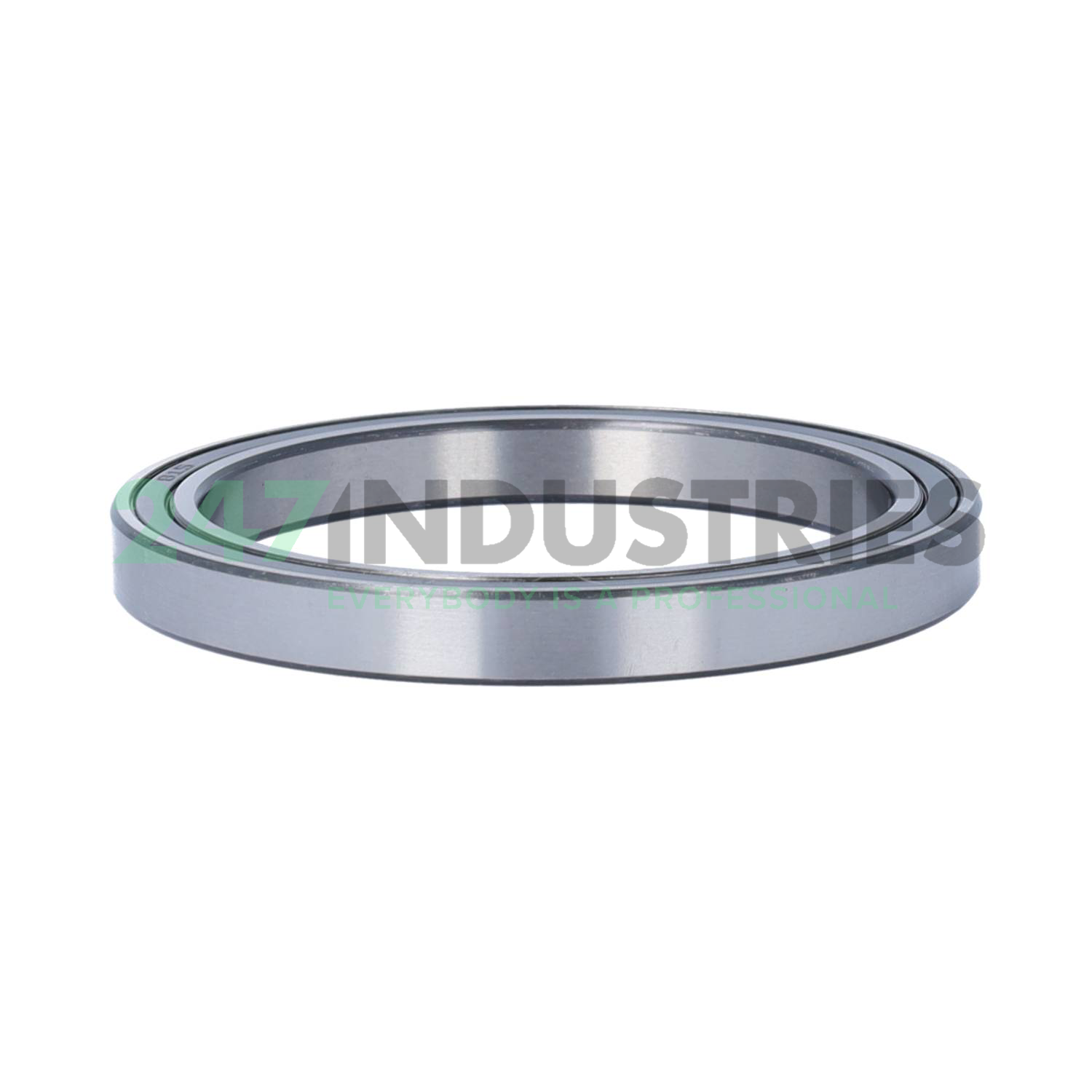

61815-2RSR-Y Elges

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 95
3. Width (B) MM 10
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.3937

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. Y Pressed Brass Retainer, Rolling Element Guided

Technical details

1. Availability 2 pcs
2. Brand Elges
3. Item number 61815-2RSR-Y Elges
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.143

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
