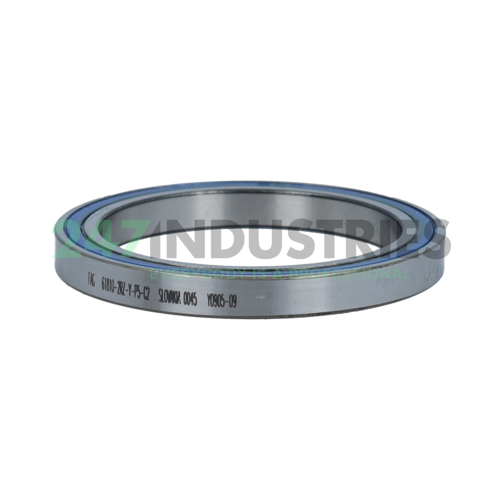

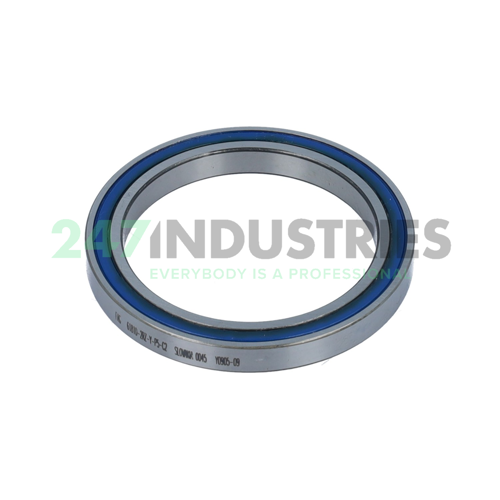

61810-2RZ-Y-P5-C2 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 65
3. Width (B) MM 7
4. Width (b) mm 7

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. Y Sheet Brass Cage, Rolling Element Guided
3. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 5 pcs
2. Brand FAG
3. Item number 61810-2RZ-Y-P5-C2 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.052

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 6300
2. Limiting speed (n G) 12900
3. Reference speed (n ϑr) 6400
