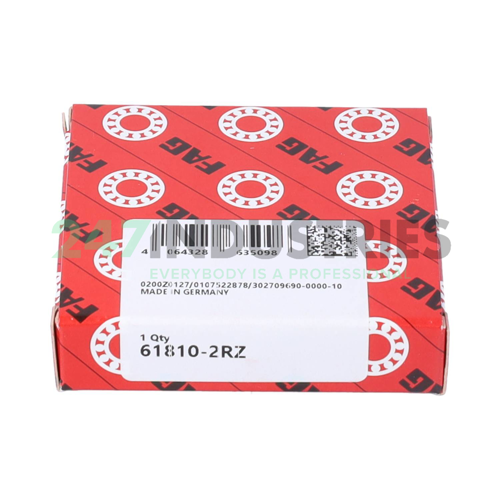

61810-2RZ FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 65
3. Width (B) MM 7
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.5591
6. Width (B) Inch 0.2756

Suffix description

1. 2RZ Non-Contact Seal On Both Sides (Rubberized Gap Seal)

Technical details

1. Availability 67 pcs
2. Brand FAG
3. Item number 61810-2RZ FAG
4. Also known as 3027096900000

5. EAN 4064328635098
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.052

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
