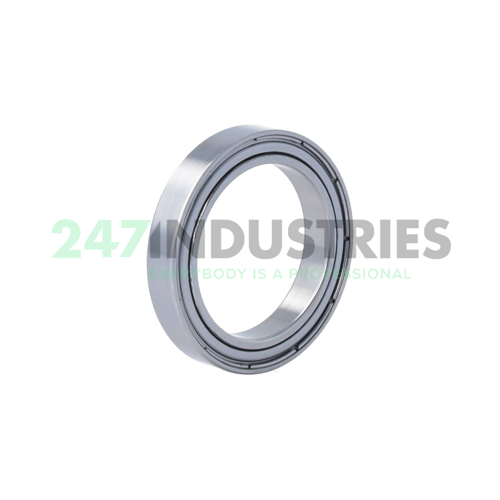

61806-2Z FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 42
3. Width (B) MM 7
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.2756

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

1. Availability 488 pcs
2. Brand FAG
3. Item number 61806-2Z FAG
4. Also known as 3004951530000
   61806-2Z-HLC

5. EAN 4064327917355
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.026

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
