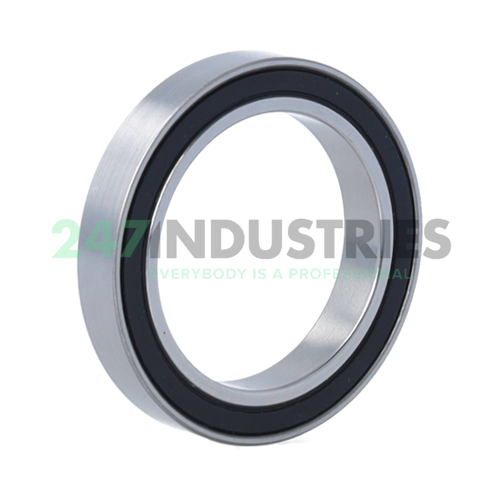

61806-2RSR-HLN FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 42
3. Width (B) MM 7
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.2756
7. Width (b) mm 7

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. HLN Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 184 pcs
2. Brand FAG
3. Item number 61806-2RSR-HLN FAG
4. Also known as 0896158160000
   61806-2RSR

5. EAN 4054369738254
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0241

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 3630
2. Limiting speed (n G) 8100
