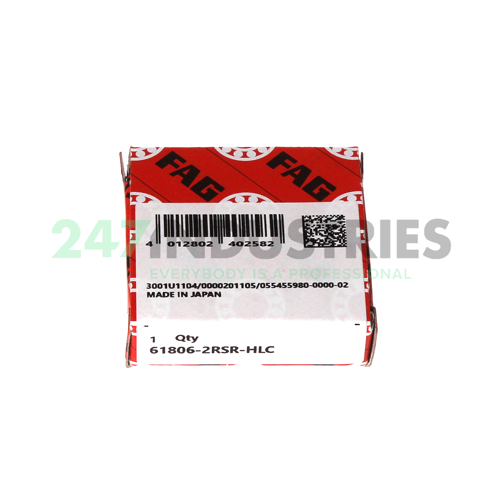

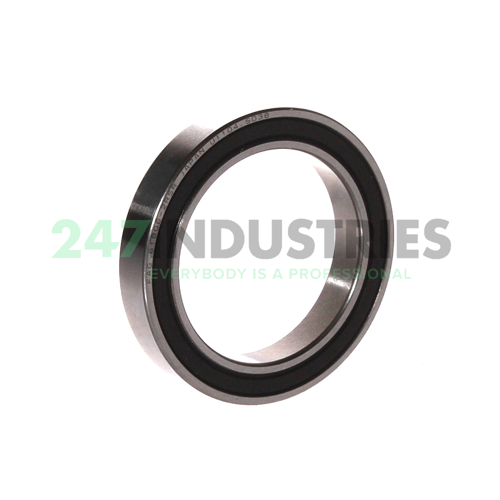

61806-2RSR-HLC FAG

All dimensions

1. Outer (D) MM 42
2. Width (B) MM 7
3. Outer (D) Inch 1.6535
4. Width (B) Inch 0.2756
5. Width (b) mm 7

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 61806-2RSR-HLC FAG
4. Also known as 0554559800000
   61806-2RSR

5. EAN 4012802402582
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0241

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3440
2. ECLASS number 23-05-08-01
3. ECLASS2 number 23-05-08-01
4. Medias description Deep groove ball bearing 618..-2RSR, single row, cf. DIN 625-1

Downloads and links

1. Link to Manufacturer Link to Manufacturer
