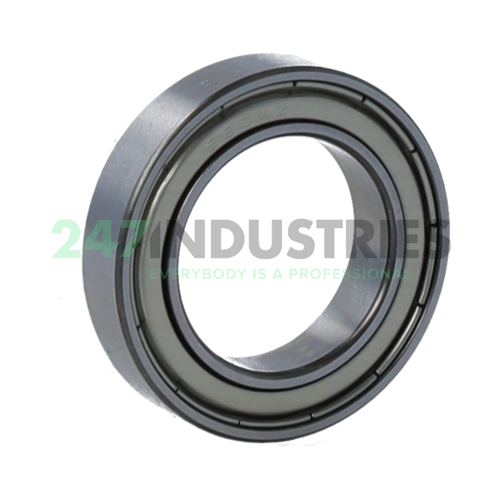

61804-2Z-L178-HLC FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 7
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.2756
7. Width (b) mm 7

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L178 High Speed Grease, Low And High Temp. -50°C / 120°C. Longtime Limit Temperature 75°C
3. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 334 pcs
2. Brand FAG
3. Item number 61804-2Z-L178-HLC FAG
4. Also known as 0097107280000
   61804-2Z-L178

5. EAN 4012802480733
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2460
2. Radial Dynamic Load Rating Cr (N) 4020
3. Limiting speed (n G) 28500
4. Reference speed (n ϑr) 17200
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 618..-2Z, main dimensions to DIN 625-1, gap seals on both sides
