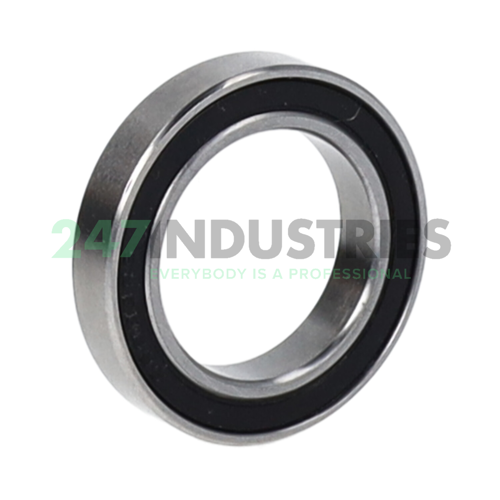

61803-2RS1/VC573 SKF

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 26
3. Width (B) MM 5
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.1969

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. VC573 Stainless Steel

Technical details

1. Availability 5 pcs
2. Brand SKF
3. Item number 61803-2RS1/VC573 SKF
4. Also known as S61803 2RS
   S61803-2RSR-HLC
   S6803 2RS
   SS61803 2RS
   SS6803 2RS
   W61803-2RS1

5. Category Stainless Steel Ball Bearings

Weight and Dimensions

1. Weight (kg) 0.007

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
