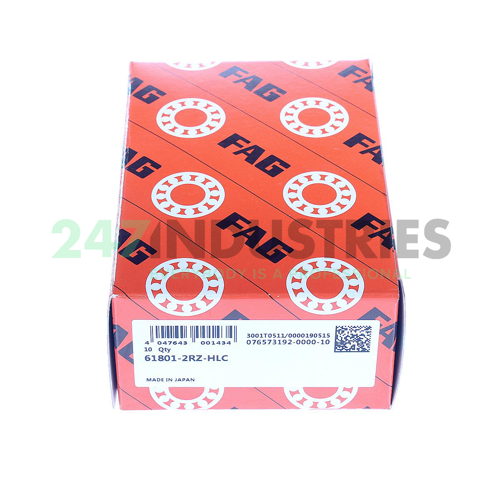

61801-2RZ-HLC FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 21
3. Width (B) MM 5
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.1969
7. Width (b) mm 5

Suffix description

1. 2RZ Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 272 pcs
2. Brand FAG
3. Item number 61801-2RZ-HLC FAG
4. Also known as 0765731920000
   61801-2RZ

5. EAN 4047643001427
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.006

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 1040
2. Limiting speed (n G) 42500
3. Reference speed (n ϑr) 23500
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
