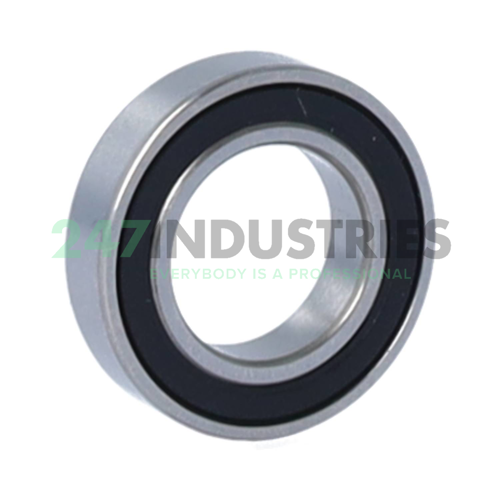

61801-2RZ FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 21
3. Width (B) MM 5
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.1969

Suffix description

1. 2RZ Non-Contact Seal On Both Sides (Rubberized Gap Seal)

Technical details

1. Availability 132 pcs
2. Brand FAG
3. Item number 61801-2RZ FAG
4. Also known as 3006012550000

5. EAN 4064328075528
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.006

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
