605-2Z-CO7-C3 FAG

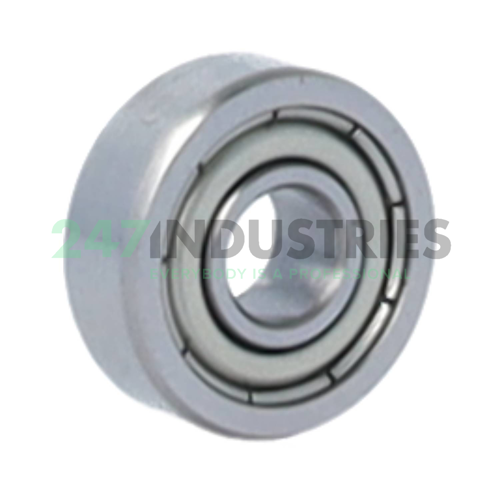

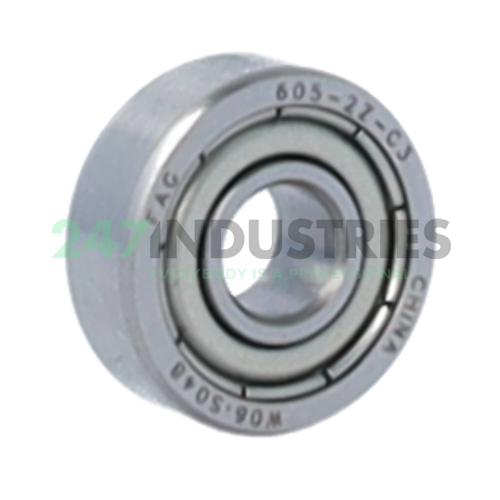

Miniature ball bearing

Stock
172 pcs in stock and ready for shipment
Brand FAG
Article number 605-2Z-CO7-C3 FAG
Inside diameter 5mm
Outside diameter 14mm
Width 5mm
Product description

The 605-2Z-CO7-C3 FAG is a miniature ball bearing. This is a very small single-row deep groove ball bearing. The design consists of an inner and an outer ring, with a ball and cage assembly in between. Thanks to their simple construction, these bearings require little maintenance. With their compact dimensions, miniature bearings are suitable for applications where space is limited.

Additionally, miniature ball bearings boast significant radial load-bearing capacity. The cage of the 605-2Z-CO7-C3 FAG ensures that the balls do not touch each other and move in a controlled manner. This generates less heat and allows for high speeds to be reached. Miniature ball bearings are therefore widely used in situations where very high rotational rates are required.

Help with this product

Similar to: 605-2Z-CO7-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 5
  2. Outer (D) MM 14
  3. Width (B) MM 5
  4. Inner (d) Inch 0.1969
  5. Outer (D) Inch 0.5512
  6. Width (B) Inch 0.1969
  7. Width (b) mm 5

Suffix description

  1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
  2. CO7 Factory Location Code, No Additional Meaning, Can Be Used As Standard
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 172 pcs
  2. Brand FAG
  3. Item number 605-2Z-CO7-C3 FAG
  4. Also known as 0955423530030
    605-2Z-C3
  5. EAN 4054372728266
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.004

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 490
  2. Limiting speed (n G) 60000
  3. Reference speed (n ϑr) 50000
