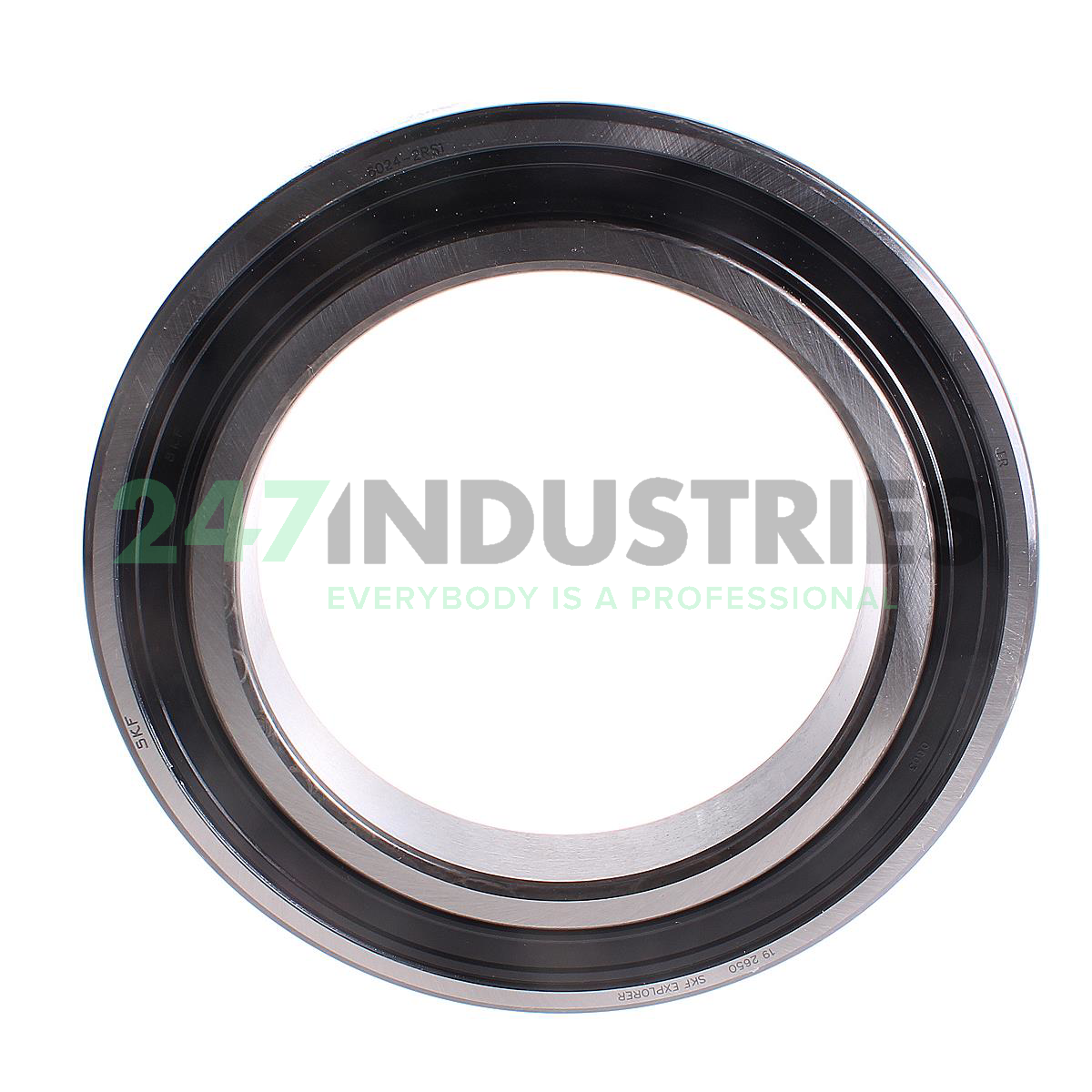

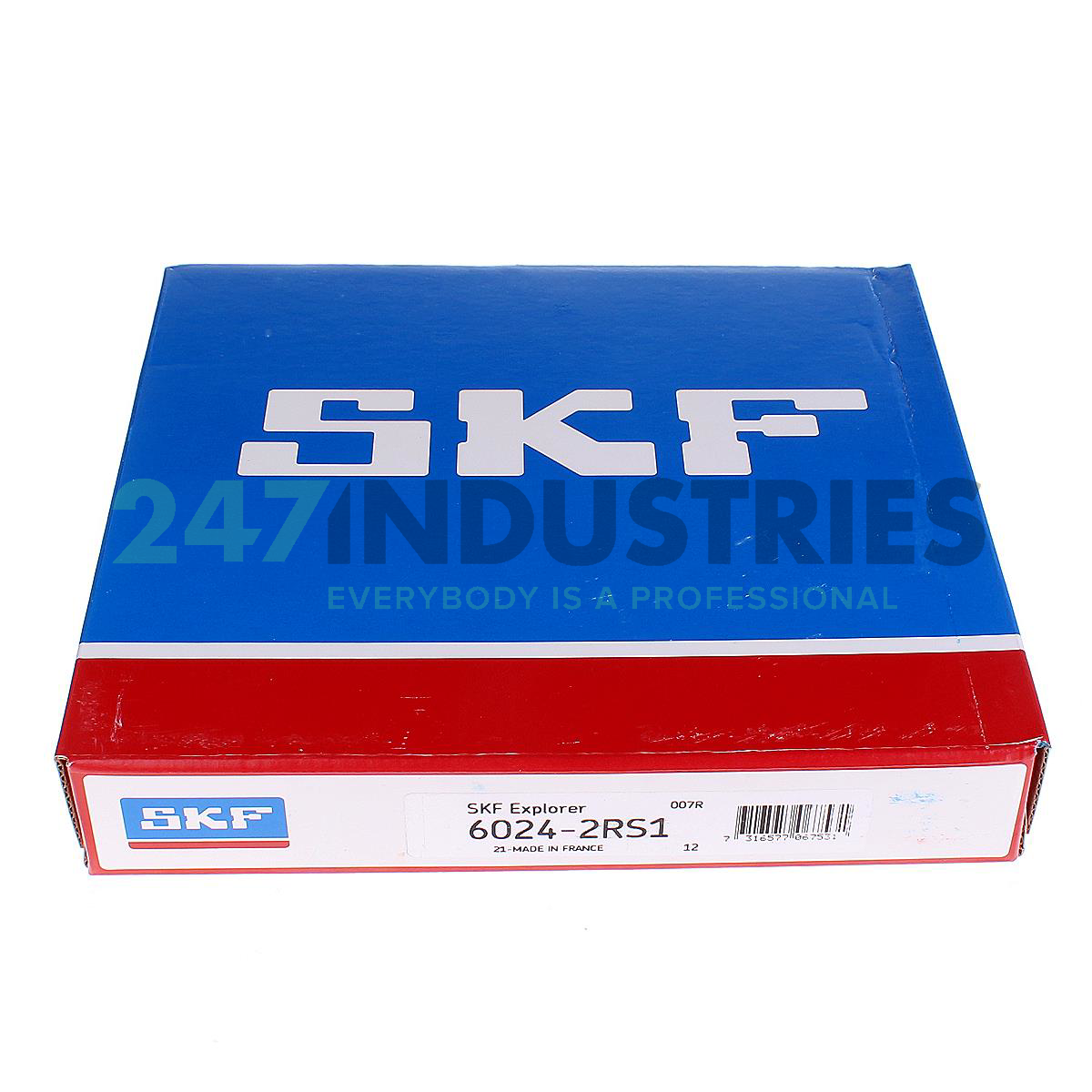

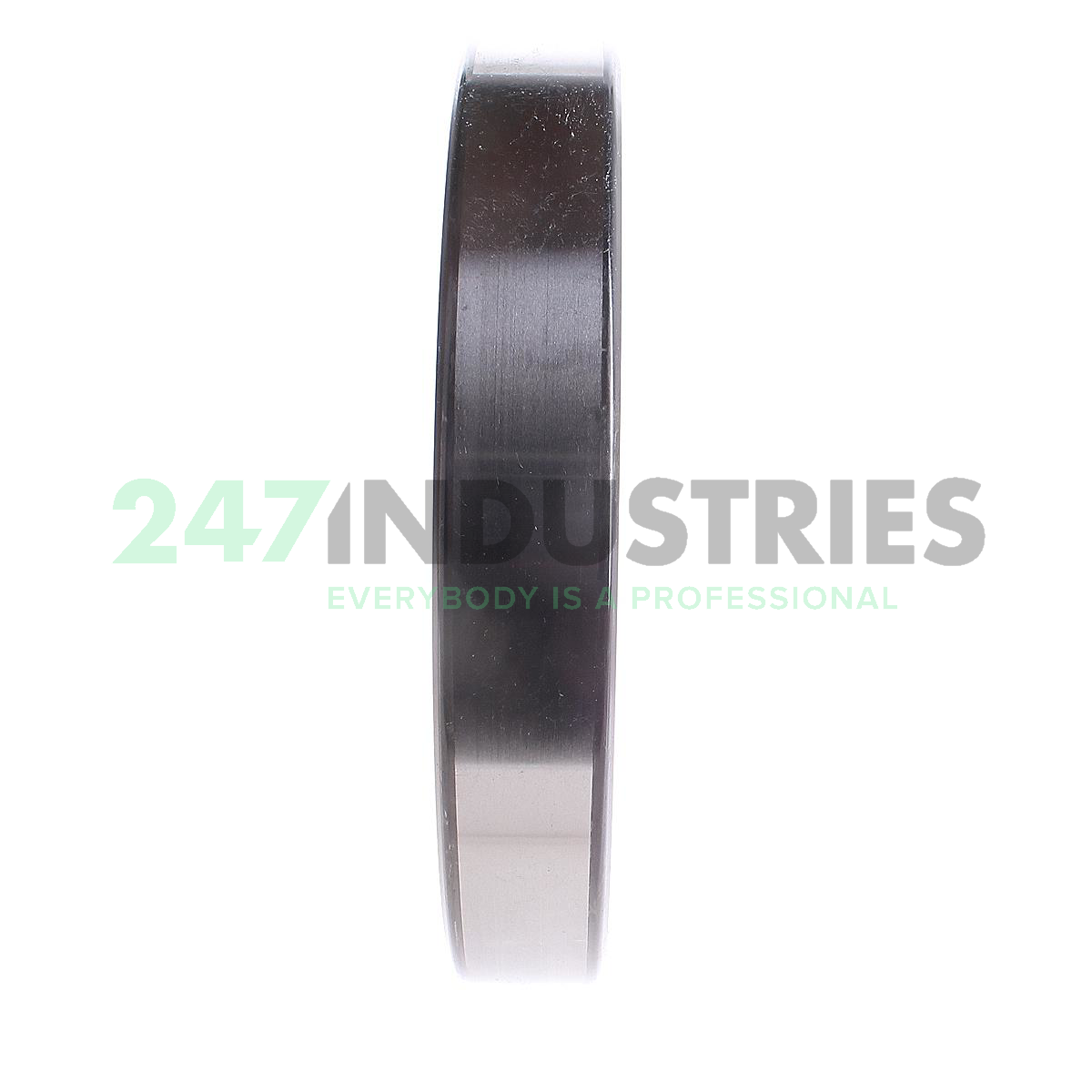

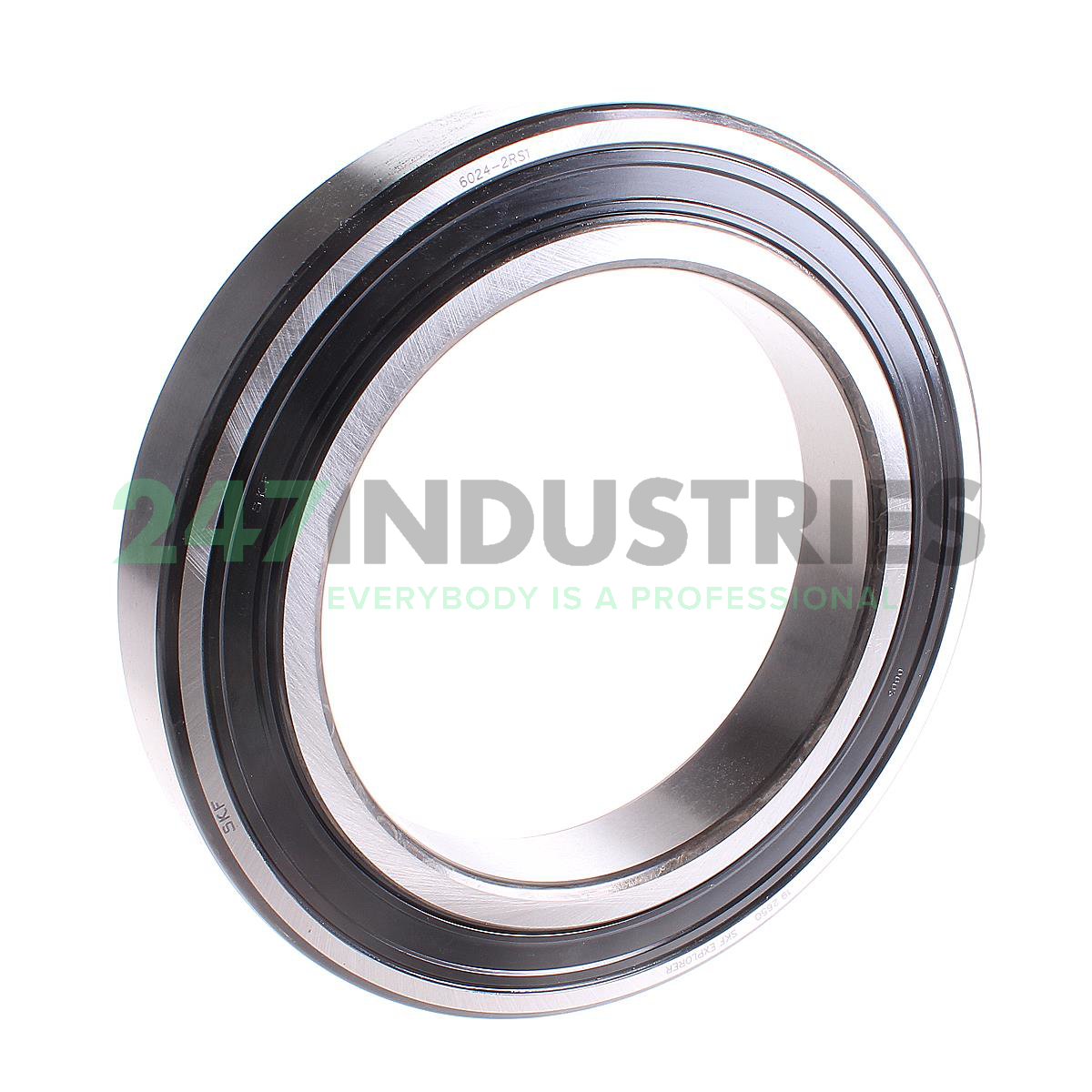

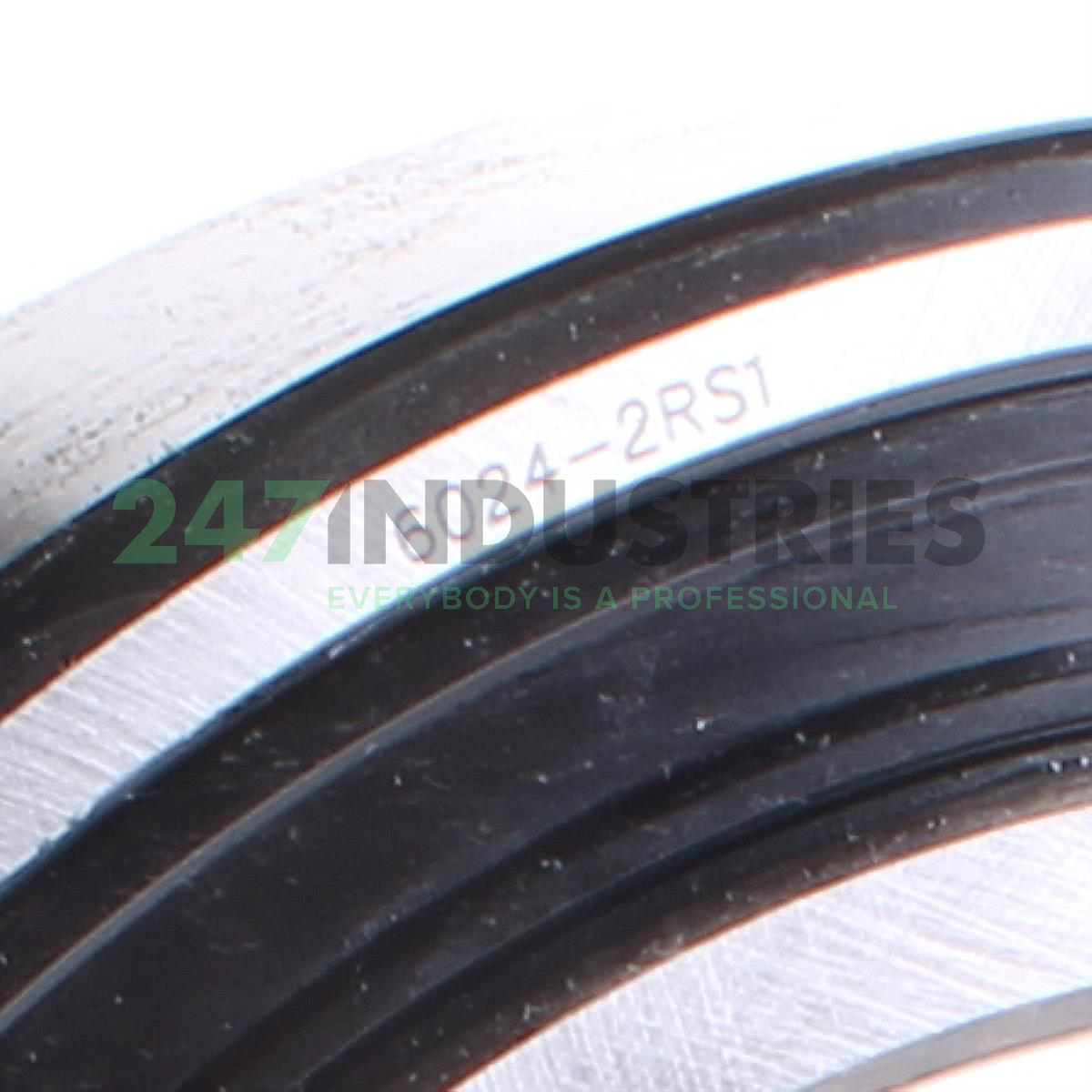

6024-2RS1 SKF

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 28
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.1024

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing

Technical details

1. Availability 30 pcs
2. Brand SKF
3. Item number 6024-2RS1 SKF
4. Also known as 6024 2RS
   6024-2RSR
   6024DDU
   6024EE
   6024LLU

5. EAN 7316577067531
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.05

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
