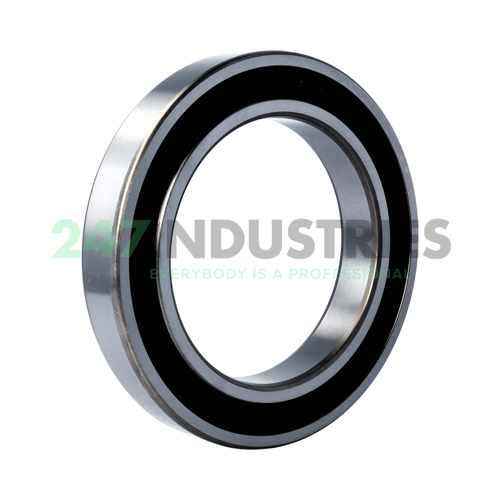

6024 2RS C3 FSY

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 28
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.1024

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FSY
3. Item number 6024 2RS C3 FSY
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.25

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
