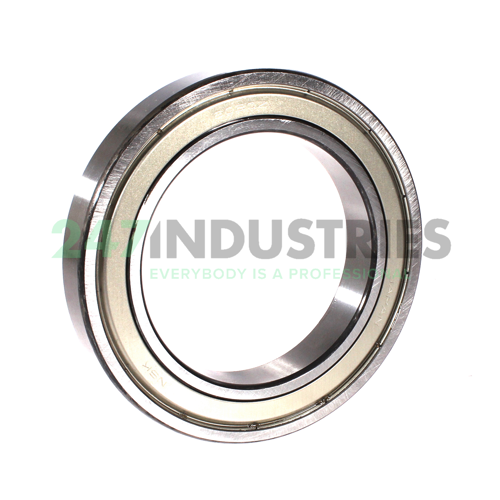

6020ZZ C3E P6 NSK

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 150
3. Width (B) MM 24
4. Inner (d) Inch 3.937
5. Outer (D) Inch 5.9055
6. Width (B) Inch 0.9449

Suffix description

1. ZZ Two Metallic Shields
2. C3 Internal Clearance Larger Than Normal
3. E Ball Bearing, Single Row, Electric Motor Grade, Noise Level
4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6020ZZ C3E P6 NSK
4. Also known as 6020-2Z/C3
   6020-2Z-C3
   6020ZZ C3E

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.42

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
