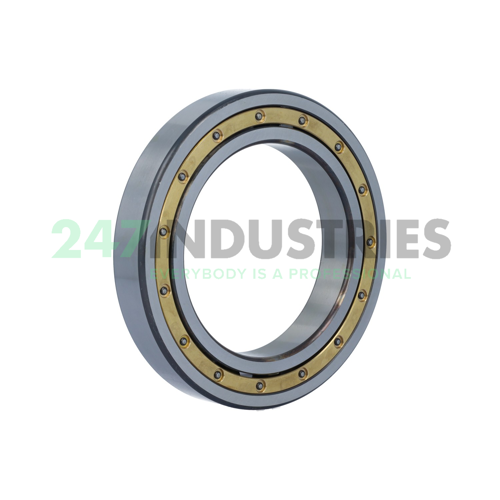

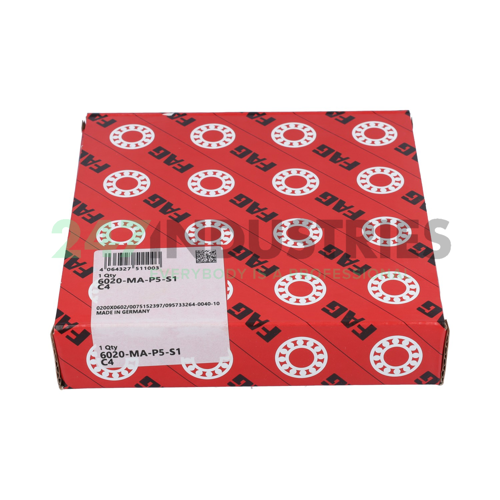

6020-MA-P5-S1-C4 FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 150
3. Width (B) MM 24
4. Width (b) mm 24

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
3. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6020-MA-P5-S1-C4 FAG
4. Also known as 0957332640040

5. EAN 4064327511003
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.56

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 54000
2. Limiting speed (n G) 7900
3. Reference speed (n ϑr) 5100
