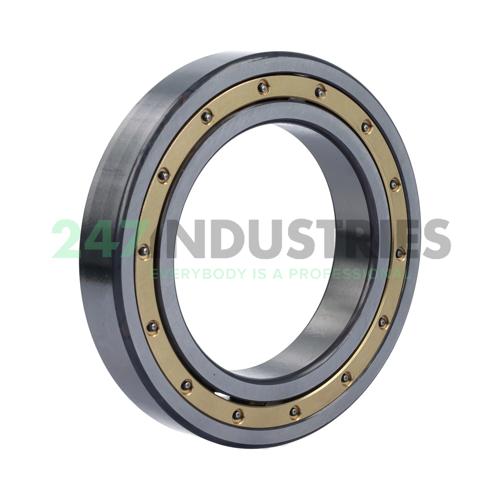

6018-MA-C4 FAG

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 140
3. Width (B) MM 24
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 5.5118
6. Width (B) Inch 0.9449
7. Width (b) mm 24

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc on Mon 23 Mar
2. Brand FAG
3. Item number 6018-MA-C4 FAG
4. Also known as 0384043200040

5. EAN 4012802143362
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.43

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 49500
2. Radial Dynamic Load Rating Cr (N) 62000
3. Limiting speed (n G) 8600
4. Reference speed (n ϑr) 5600
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60..-MA, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
