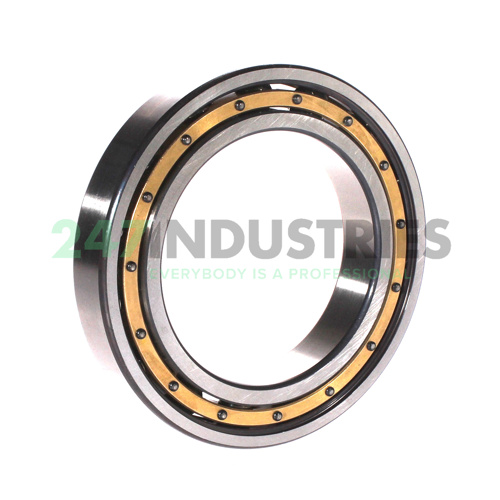

6017-M-S1-C4 FAG

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 130
3. Width (B) MM 22
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.1181
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6017-M-S1-C4 FAG
4. Also known as 0388955280040

5. EAN 4012801274647
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.095

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43000
2. Radial Dynamic Load Rating Cr (N) 53000
3. Limiting speed (n G) 9300
4. Reference speed (n ϑr) 5800
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60..-M, single row, cf. DIN 625-1
