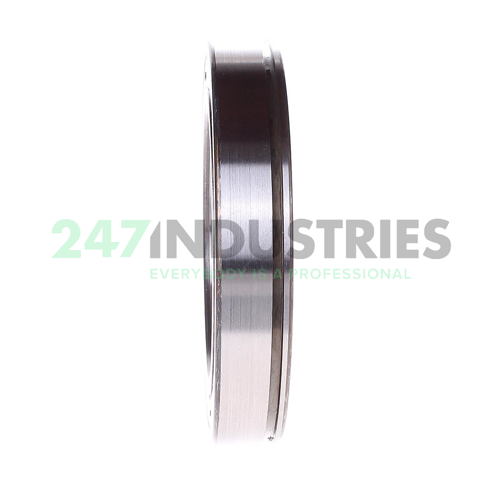

6017 2RSSN/ C3 Steyr

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 130
3. Width (B) MM 22
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.1181
6. Width (B) Inch 0.8661

Suffix description

1. 2RSS Double Seal With Both Seal Lips Turned Out
2. N Snap Ring Groove In The Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand Steyr
3. Item number 6017 2RSSN/ C3 Steyr
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.9

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
