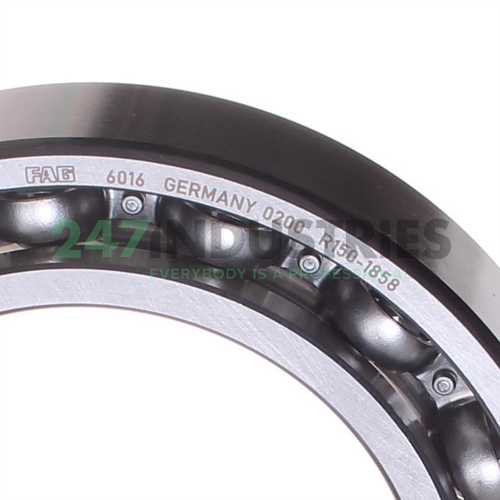

6016 FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 22
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Technical details

1. Availability 73 pcs
2. Brand FAG
3. Item number 6016 FAG
4. Also known as 0167181510000
   0933286720000
   6016-B

5. EAN 4012801201490
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.85

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 40000
2. Radial Dynamic Load Rating Cr (N) 51000
3. Limiting speed (n G) 7500
4. Reference speed (n ϑr) 6100
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
