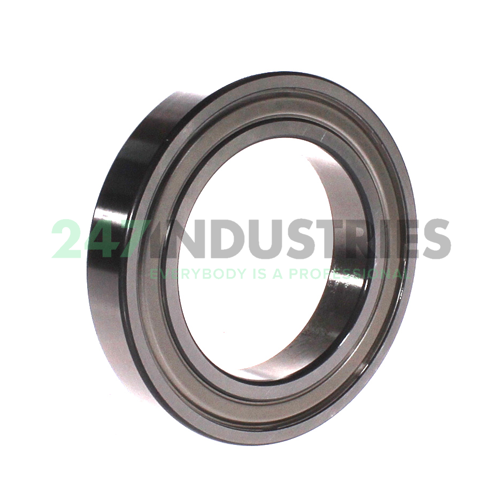

6016-2Z FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 22
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

1. Availability 40 pcs
2. Brand FAG
3. Item number 6016-2Z FAG
4. Also known as 0167181860000

5. EAN 4012801201520
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.85

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 40000
2. Radial Dynamic Load Rating Cr (N) 51000
3. Basic static load rating, radial (C 0r) "40000.0000"
4. Limiting speed (n G) 6300
5. Reference speed (n ϑr) 6100
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 60..-2Z, main dimensions to DIN 625-1, gap seals on both sides
