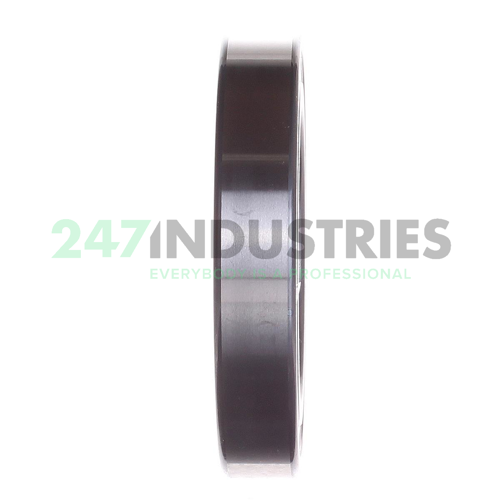

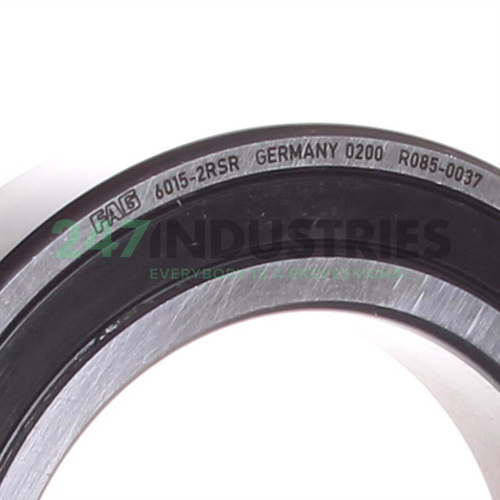

6015-2RSR FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 115
3. Width (B) MM 20
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.5276
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 73 pcs
2. Brand FAG
3. Item number 6015-2RSR FAG
4. Also known as 0167180890000
   0935222740000
   6015 2RS
   6015-2RS1
   6015DDU
   6015EE
   6015LLU

5. EAN 4012801076302
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 33500
2. Radial Dynamic Load Rating Cr (N) 42000
3. Limiting speed (n G) 3050
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 60..-2RSR, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
